Diagnostics with Phenomenon: Inspection: Wiring Diagram

Push button start system < Refer to appropriate SYSTEM WIRING DIAGRAM.>

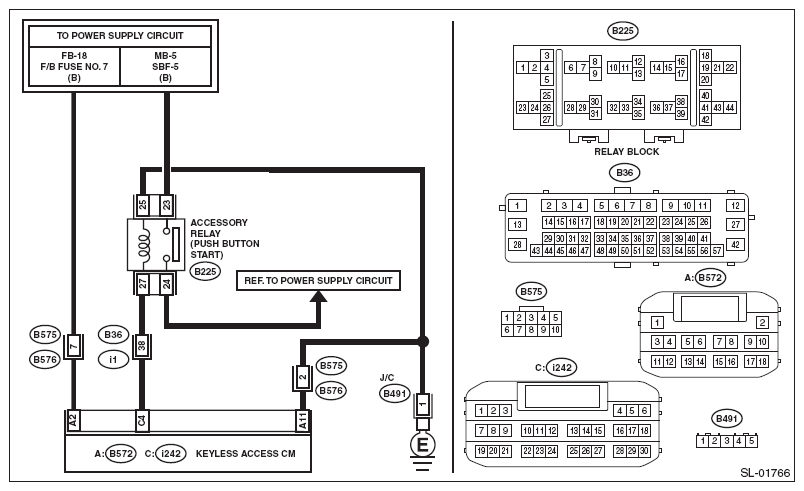

Fig 1: Push Button Start System - Wiring Diagram (Power Will Not Turn On)
G08585643Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK FUSE.
Check the fuse.		 Is the fuse OK? Go to step 2  . Replace the fuse.
2 CHECK CONNECTOR.
Check the engagement of each connector and for any deformation or looseness.		 Are the connectors and terminals normal? Go to step 3  . Repair the connector, or replace harness.
3 CHECK WIRING HARNESS.
  1. Disconnect the keyless access CM connector.
  2. Using a tester, measure the voltage between the keyless access CM connector and chassis ground.

    Connector & terminal

    (B572) No. 2 (+) - Chassis ground (-):

 Is the voltage between 8 V and 16 V? Go to step 4  . Repair or replace the open circuit of harness.
4 CHECK WIRING HARNESS.
Using a tester, check continuity between the keyless access CM connector and chassis ground.
Connector & terminal
(B572) No. 11 - Chassis ground: 		 Is there continuity? Go to step 5  . Repair or replace the open circuit of harness.
5 CHECK ACCESSORY RELAY (PUSH BUTTON START).
Check the accessory relay (push button start). < Refer to INSPECTION , Accessory Relay (Push Button Start). >		 Is the relay OK? Go to step 6  . Replace the relay.
6 CHECK WIRING HARNESS.
  1. Disconnect the keyless access CM connector and the accessory relay (push button start).
  2. Using a tester, check continuity between the keyless access CM connector and accessory relay (push button start).

    Connector & terminal

    (i242) No. 4 - (B225) No. 27:

 Is there continuity? Go to step 7  . Repair or replace the open circuit of harness.
7 CHECK WIRING HARNESS.
Using a tester, check continuity between the keyless access CM connector and chassis ground.
Connector & terminal
(i242) No. 4 - Chassis ground: 		 Is there continuity? Repair or replace the short circuit of the harness. Go to step 8  .
8 CHECK KEYLESS ACCESS CM.
  1. Connect the keyless access CM connector.
  2. Using a tester, measure the voltage between the keyless access CM connector and chassis ground when the ignition is turned from OFF to ON.

    Connector & terminal

    (i242) No. 4 (+) - Chassis ground (-):

 Did the voltage change from 1 V or less → +B-2 V or more? System is normal. Replace the keyless access CM. < Refer to KEYLESS ACCESS CM . >


Push button start system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

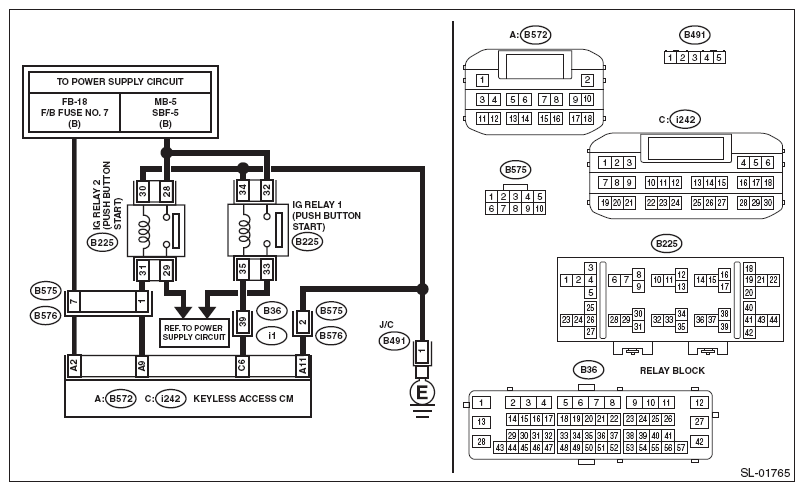

Fig 1: Push Button Start System - Wiring Diagram
G08585642Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK FUSE.
Check the fuse.		 Is the fuse OK? Go to step 2  . Replace the fuse.
2 CHECK CONNECTOR.
Check the engagement of each connector and for any deformation or looseness.		 Are the connectors and terminals normal? Go to step 3  . Repair the connector, or replace harness.
3 CHECK WIRING HARNESS.
  1. Disconnect the keyless access CM connector.
  2. Using a tester, measure the voltage between the keyless access CM connector and chassis ground.

    Connector & terminal

    (B572) No. 2 (+) - Chassis ground (-):

 Is the voltage between 8 V and 16 V? Go to step 4  . Repair or replace the open circuit of harness.
4 CHECK WIRING HARNESS.
Using a tester, check continuity between the keyless access CM connector and chassis ground.
Connector & terminal
(B572) No. 11 - Chassis ground: 		 Is there continuity? Go to step 5  . Repair or replace the open circuit of harness.
5 CHECK IG RELAY 1 AND 2 (PUSH BUTTON START).
Check IG relay 1 (push button start) and IG relay 2 (push button start). < Refer to INSPECTION , IG Relay1 (Push Button Start). >		 Is the relay OK? Go to step 6  . Replace the relay.
6 CHECK WIRING HARNESS.
  1. Disconnect the keyless access CM connector and the IG relay 1 and 2 (push button start).
  2. Using a tester, check continuity between keyless access CM connector and IG relay 1 (push button start) or IG relay 2 (push button start).

    Connector & terminal

    (B572) No. 9 - (B225) No. 31:

    (i242) No. 6 - (B225) No. 35:

 Is there continuity? Go to step 7  . Repair or replace the open circuit of harness.
7 CHECK WIRING HARNESS.
Using a tester, check continuity between the keyless access CM connector and chassis ground.
Connector & terminal
(B572) No. 9 - Chassis ground:
(i242) No. 6 - Chassis ground: 		 Is there continuity? Repair or replace the short circuit of the harness. Go to step 8  .
8 CHECK KEYLESS ACCESS CM.
  1. Connect the keyless access CM connector.
  2. Using a tester, measure the voltage between the keyless access CM connector and chassis ground when the ignition is turned from OFF to ON.

    Connector & terminal

    (B572) No. 9 (+) - Chassis ground (-):

    (i242) No. 6 (+) - Chassis ground (-):

 Did the voltage change from 1 V or less → +B-2 V or more? System is normal. Replace the keyless access CM. < Refer to KEYLESS ACCESS CM . >
