DTC B2284 Brake Signal (Cable-Information Does Not Match To Bean-Information): Wiring Diagram

Stop light system < Refer to appropriate SYSTEM WIRING DIAGRAM.>

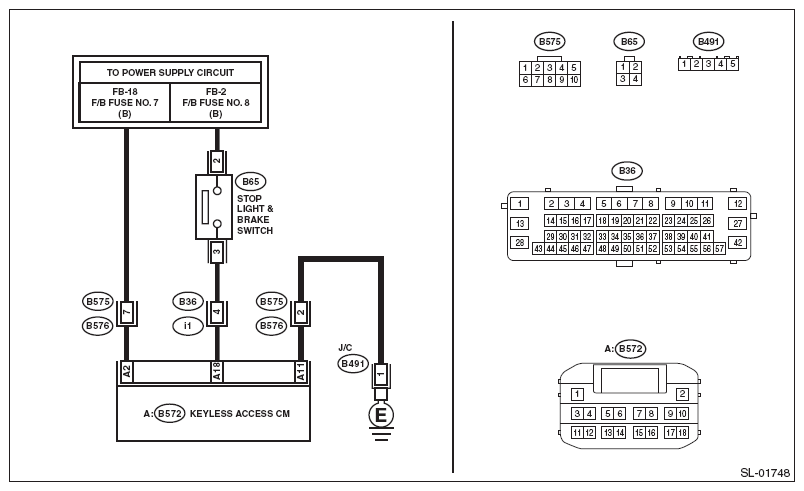

Fig 1: Stop Light System - Wiring Diagram (Brake Signal)
G08585648Courtesy of SUBARU OF AMERICA, INC.
