Steering Lock CM: Removal

Disconnect the ground cable from battery.
Remove the steering column assembly. Refer to REMOVAL .
Remove the steering lock CM.
1. Secure the steering column in a vise.
2. Remove the bolts, and remove the dynamic damper.

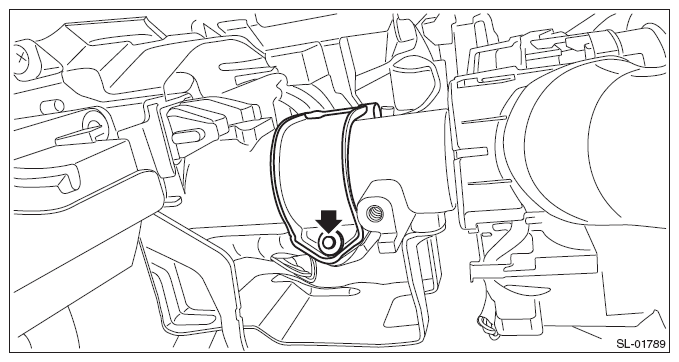

  Fig 1: Locating Steering Lock CM Bolt
  Courtesy of SUBARU OF AMERICA, INC.
3. Drill out the bolts and remove the steering lock CM.

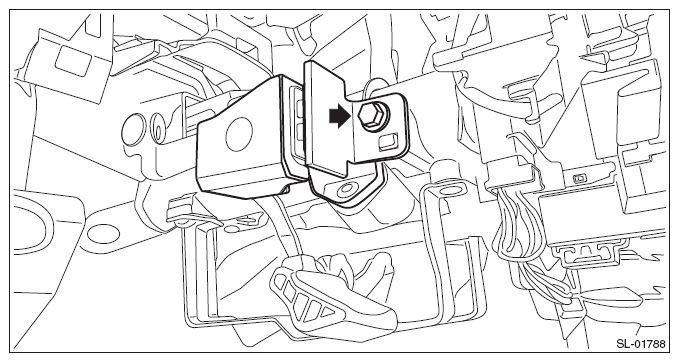

  Fig 2: Locating Steering Lock CM Bolt
  Courtesy of SUBARU OF AMERICA, INC.
