Rear Antenna

CAUTION: Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.
  1. Remove the rear gate garnish. Refer to REMOVAL .
  2. Remove the rear exterior antenna.
    1. Disconnect the connector.
    2. Remove the screws, then remove the rear exterior antenna.

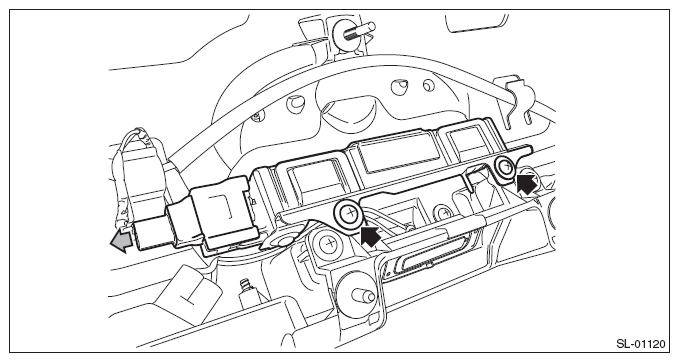

      Fig 1: Disconnecting Rear Exterior Antenna Connector
      G08585024Courtesy of SUBARU OF AMERICA, INC.
