Home >> Subaru >> 2013 >> Legacy Premium, Automatic CVT Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Anti-Theft System - Security And Locks >> Keyless Access Indoor Antenna >> Removal >> Center Antenna

Center Antenna

  1. Disconnect the ground cable from battery.
  2. Remove the rear seat cushion. Refer to OUTBACK MODEL .
  3. Remove the center antenna.
    1. Disconnect the center antenna connector.
    2. Remove the two bolts and remove the center antenna case.
    3. Release the claws, and then remove the center antenna from the center antenna case.

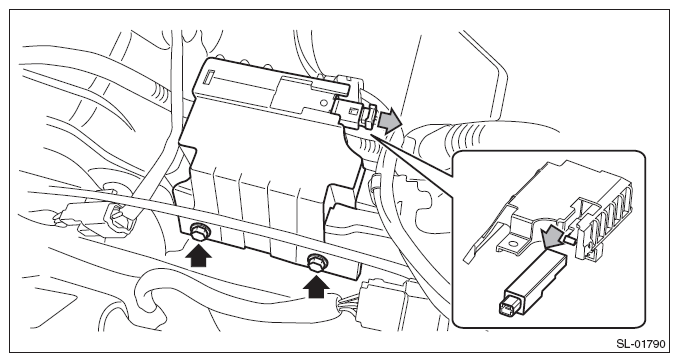

      Fig 1: Disconnecting Center Antenna Connector
      G08585018Courtesy of SUBARU OF AMERICA, INC.
