Front Door Latch and Door Lock Actuator Assembly: Removal

Raise the front door glass to the top position.
Remove the front door trim. Refer to FRONT DOOR .
Remove the sealing cover.
CAUTION:
- Carefully remove the butyl tape. Excessive force will easily break the cover.
- If the sealing cover gets broken, replace it with a new part.
Fig 1: Removing Sealing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from the outer handle rod clamp.

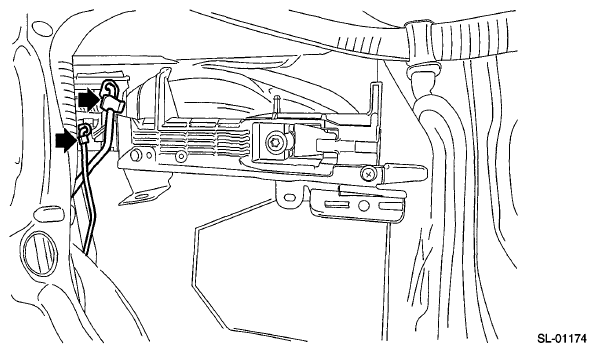

Fig 2: Locating Outer Handle Rod Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the door sash lower.
1. Remove the lower side of the glass run rubber.
2. Remove the bolts, and then remove the door sash lower.

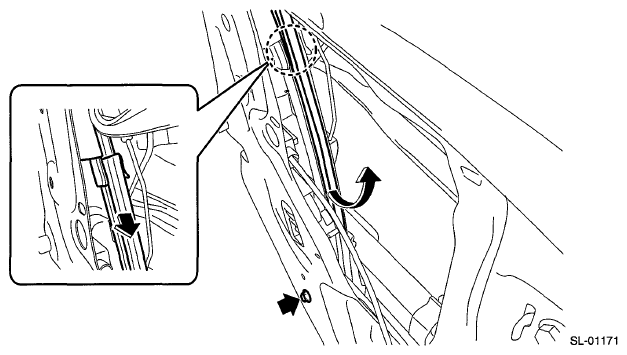

  Fig 3: Removing Door Sash Lower
  Courtesy of SUBARU OF AMERICA, INC.
Remove the front door latch and door lock actuator assembly.
1. Disconnect the connector.
2. Remove the screws, and remove the front door latch & door lock actuator assembly.

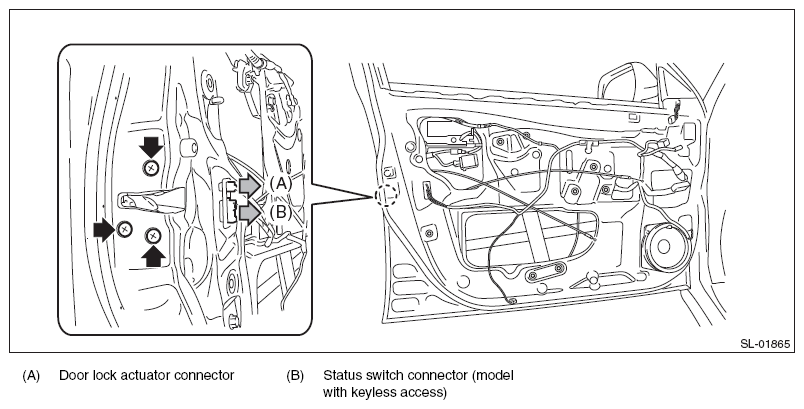

  Fig 4: Removing Door Lock Actuator Connector And Status Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.
