Check Status Switch (With Keyless Access)

Measure the resistance between status switch terminals.

Preparation tool:

Circuit tester

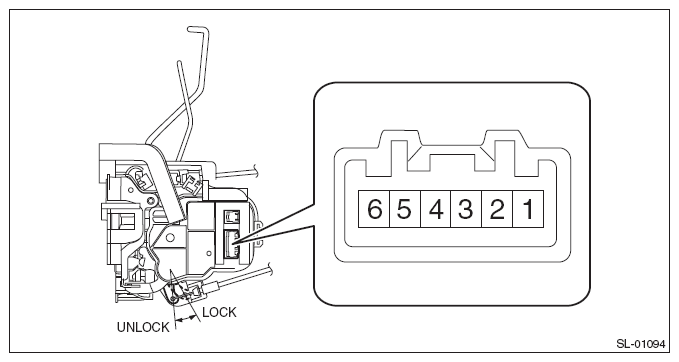

Fig 1: Identifying Status Switch Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
1 - 3	LOCK	1 MΩ or more
1 - 3	UNLOCK	Less than 1 Ω

Terminal No.	Inspection conditions	Standard
4 - 6	LOCK	1 MΩ or more
4 - 6	UNLOCK	Less than 1 Ω

If the inspection result is not within the standard value, replace the front door latch & door lock actuator assembly.
