Washer Tank and Motor: Removal

Open the front hood.
Disconnect the ground cable from battery.
Remove the front bumper face assembly.
1. Remove the clips and turn over the front end of front mud guard. (Model with fog light)

  Fig 1: Locating Front Mud Guard Mounting Clips
  Courtesy of SUBARU OF AMERICA, INC.

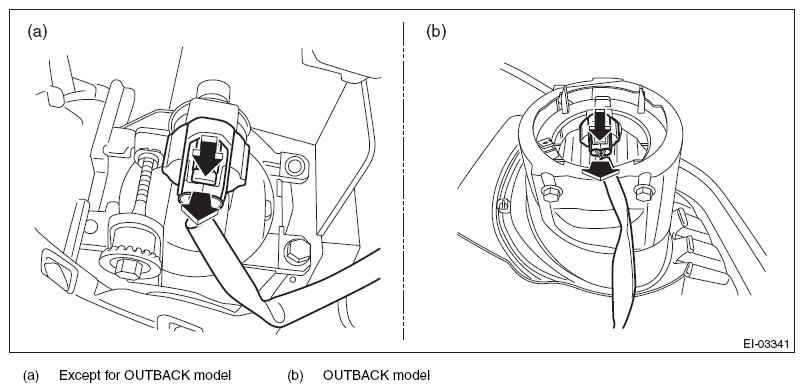

2. Disconnect the front fog light connector. (Model with fog light)

  Fig 2: Disconnecting Front Fog Light Connector
  Courtesy of SUBARU OF AMERICA, INC.

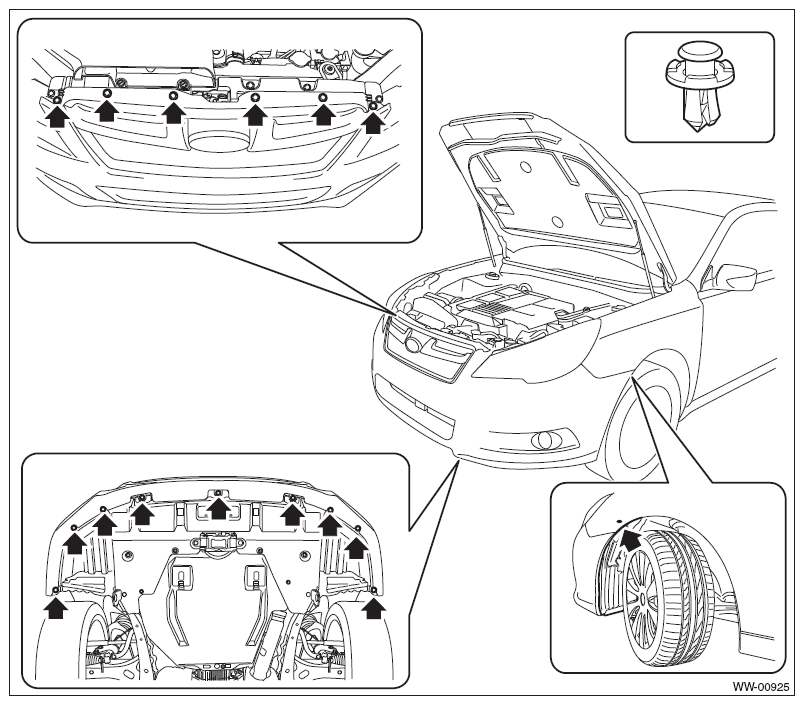

3. Remove the clips at the upper side of the bumper.
4. Remove the clips from the fender.
5. Remove the clips at the lower side of bumper.

  Fig 3: Locating Bumper Lower Side Mounting Clips
  Courtesy of SUBARU OF AMERICA, INC.
6. Detach the flange section on the bumper face side from the bracket side front UPR.
  CAUTION: Do not pull forcibly. It may damage the flange sections of the bumper face.

  Fig 4: Detaching Flange Section On Bumper Face Side From Bracket Side Front UPR
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: Pushing up the lower side (a) of the fog light, remove from (b) to (e).
  Detach the opposite side in the same manner.
Remove the washer tank assembly.

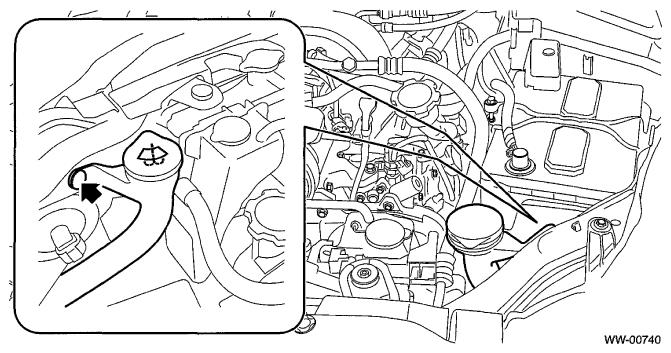

1. Remove the clip of the washer tank duct.

  Fig 5: Locating Washer Tank Duct Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Prepare a container before disconnecting the washer hose and drain all washer fluid in the tank.
3. Disconnect the connector from the washer motor and washer tank level sensor, and then remove the harness clip.

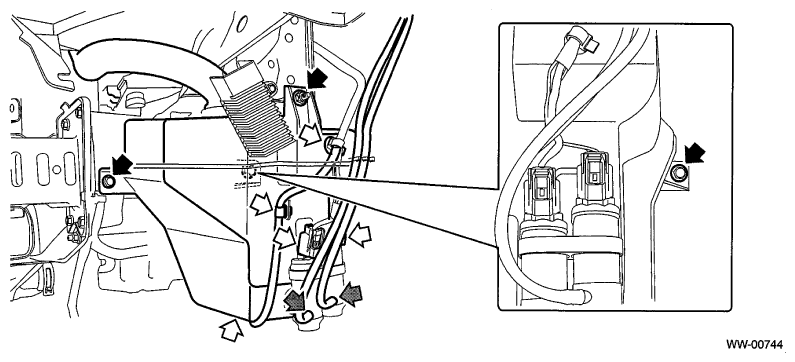

4. Remove the bolt and nuts and remove the washer tank assembly.

  Fig 6: Locating Washer Tank Assembly Bolt And Nuts
  Courtesy of SUBARU OF AMERICA, INC.
Remove the washer motor from the tank.
