Front Wiper Motor and Link: Inspection

  1. When the battery is connected to the terminal of connectors, confirm that the motor operates at low speed.
  2. When the battery is connected to the terminal of connectors, confirm that the motor operates at high speed.
  3. Connect the battery to the terminals of connector, then run the motor at low speed and disconnect the terminal in mid motion.
  4. Connect the battery and confirm that the motor stops at the automatic stop position after the motor operates at low speed again.

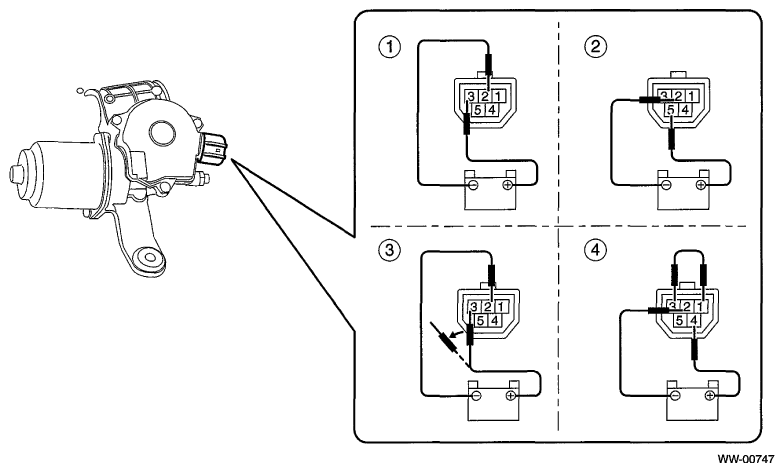

    Fig 1: Checking Motor Operation
    G06653549Courtesy of SUBARU OF AMERICA, INC.
