Trunk Room Light: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the trunk room light
    1. Disconnect the connector.
    2. Turn the trunk room light counterclockwise to 60° and remove the light.

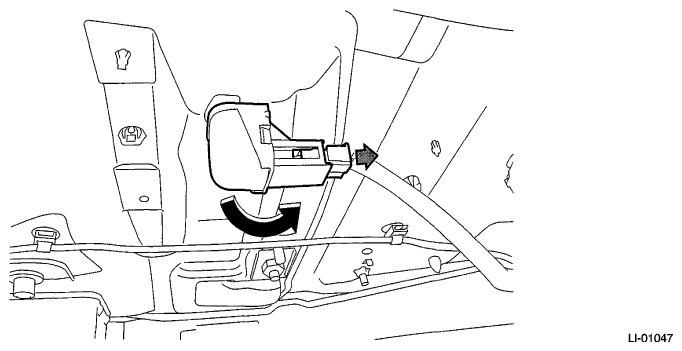

      Fig 1: Turning Trunk Room Light Counterclockwise
      G06653499Courtesy of SUBARU OF AMERICA, INC.
  3. Release the claws, and detach the trunk room light cover and bulb.

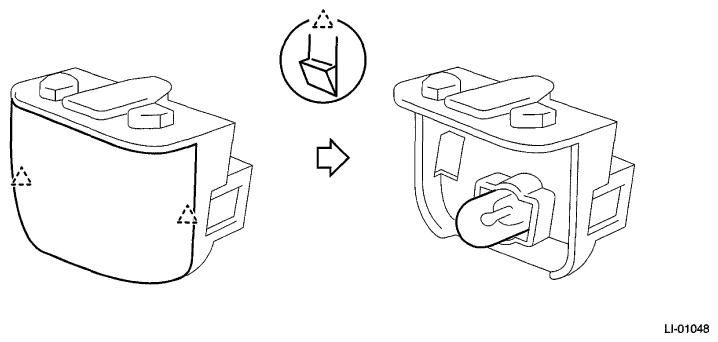

    Fig 2: Identifying Trunk Room Light Cover And Bulb
    G06653500Courtesy of SUBARU OF AMERICA, INC.
