Sedan Model

  1. Disconnect the ground cable from battery.
  2. Release the lock and remove the bulb inspection cover of trunk room trim.

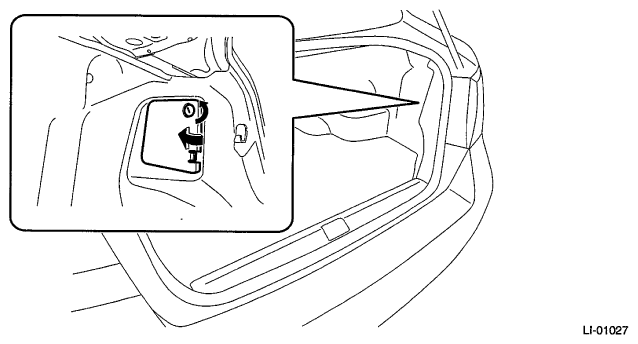

    Fig 1: Removing Bulb Inspection Cover Of Trunk Room Trim
    G06653463Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and tail light/stop light bulb.

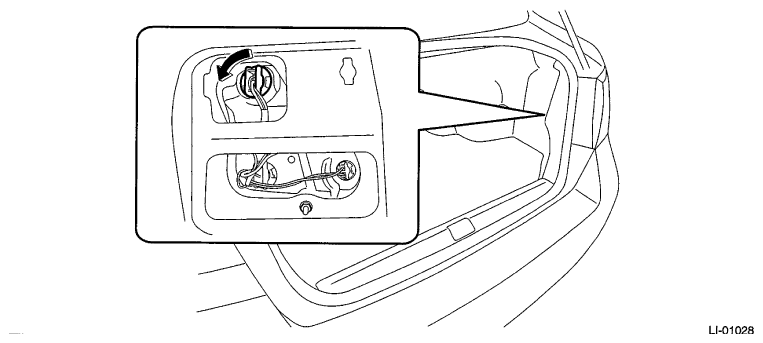

    Fig 2: Removing Bulb Socket And Tail Light/Stop Light Bulb
    G06653464Courtesy of SUBARU OF AMERICA, INC.
  1. Disconnect the ground cable from battery.
  2. Remove the trunk lid trim. Refer to TRUNK LID TRIM .
  3. Remove the bulb socket and tail light bulb.

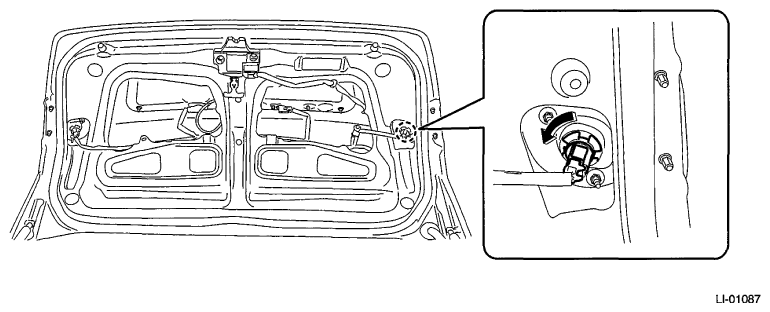

    Fig 3: Removing Bulb Socket And Tail Light Bulb
    G06653465Courtesy of SUBARU OF AMERICA, INC.
