Outback Model

  1. Disconnect the ground cable from battery.
  2. Remove the clips and detach the rear combination light covers.
    Fig 1: Locating Rear Combination Light Covers Mounting Clips
    G06653461Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear combination light assembly.
    CAUTION: Be careful not to damage the clips.
    1. Release the bolts and clips, then pull out the rear combination light assembly to the vehicle rear.
    2. Disconnect the connector and remove the rear combination light assembly.
      Fig 2: Locating Rear Combination Light Assembly Mounting Bolts
      G06653462Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bulb sockets and bulbs.

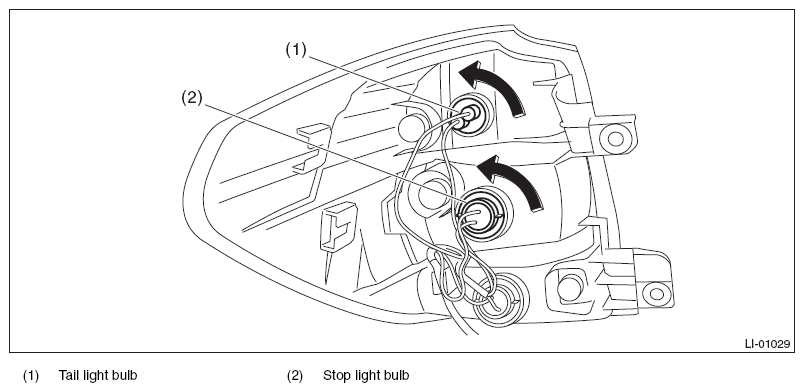

    Fig 3: Removing Tail Light And Stop Light Bulbs
    G08584440Courtesy of SUBARU OF AMERICA, INC.
  1. Release the claws and remove the bulb inspection cover of rear gate trim
    Fig 4: Removing Bulb Inspection Cover Of Rear Gate Trim
    G06653469Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bulb socket and tail light bulb.

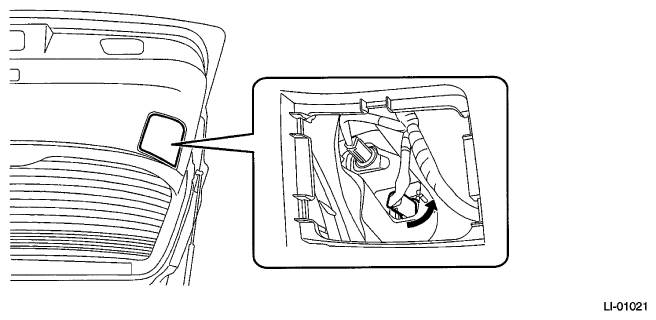

    Fig 5: Removing Bulb Socket And Tail Light Bulb
    G06653470Courtesy of SUBARU OF AMERICA, INC.
