Spot Map Light: Removal

NOTE: The spot map light is a single unit with the overhead console or stereo camera cover.

Disconnect the ground cable from battery.
Remove the overhead console assembly. (Models without EyeSight)
1. Push and open the rear end of the overhead console lid, and remove the screws.
2. Remove the clips and pull out the overhead console to disconnect the connectors.

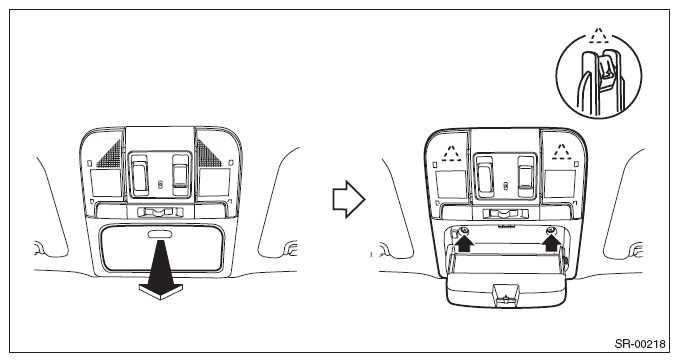

  Fig 1: Removing Overhead Console Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove the stereo camera cover assembly. (Models with EyeSight) Refer to REMOVAL .
Release the claws, then detach the spot map light cover and bulb.

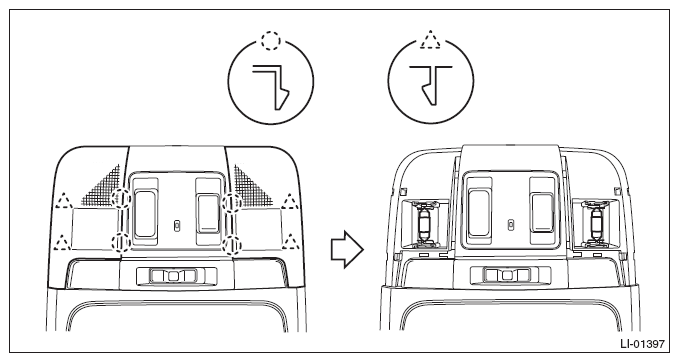

Fig 2: Identifying Spot Map Light Cover And Bulb With Mounting Claws
Courtesy of SUBARU OF AMERICA, INC.
