Side Turn Signal Light Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the mirror. Refer to REPLACEMENT .
  3. Remove the scalp cap. Refer to REPLACEMENT .
  4. Remove the side turn signal light assembly.
    1. Remove the screws and pull out the side turn signal light assembly.
    2. Disconnect the connector and remove the side turn signal light assembly.

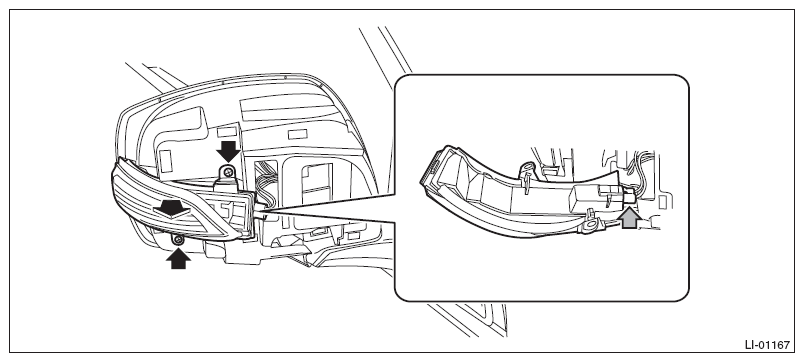

      Fig 1: Removing Side Turn Signal Light Assembly
      G08584431Courtesy of SUBARU OF AMERICA, INC.
