Room Light: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the room light.
    1. Release the claws and remove the cover.
    2. Remove the screws.

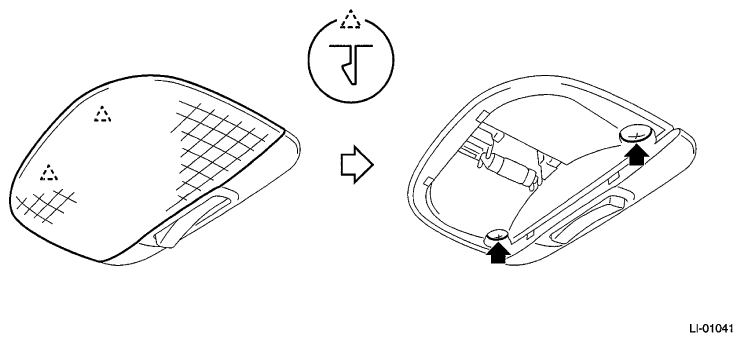

      Fig 1: Locating Room Light Cover Mounting Screws
      G06653389Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector and remove the room light and bulb.

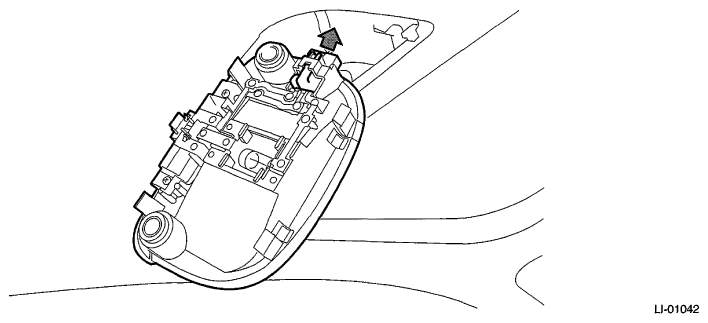

      Fig 2: Disconnecting Room Light And Bulb Connector
      G06653494Courtesy of SUBARU OF AMERICA, INC.
