Room Light Switch
- Remove the room light.

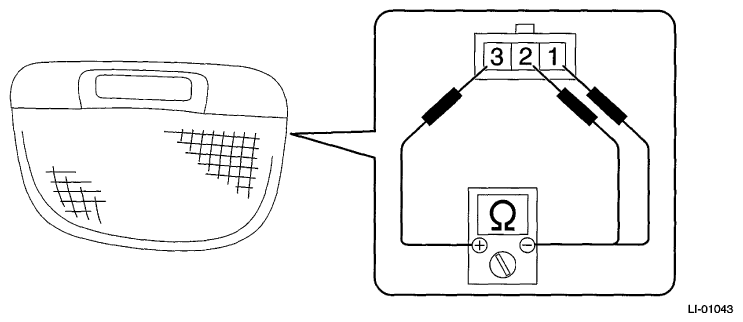

- Measure the resistance between room light switch terminals.
Preparation tool:
Circuit tester
Terminal No. Inspection Conditions Standard - Switch OFF 1 MΩ or more 1 - 3 Switch ON Less than 1 Ω 2 - 3 Switch door Less than 1 Ω - Apply battery voltage to check the lighting condition of room light.
Terminal No. Inspection Conditions Specification 3 (+) - 1, 2 (-) Switch OFF Light OFF Switch ON Light ON Switch door Light ON - Replace the room light if the inspection result is not within the standard value.
