Home >> Subaru >> 2013 >> Legacy Premium, Automatic CVT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System >> Rear Turn Signal Light Bulb >> Removal >> Sedan Model

Sedan Model

  1. Disconnect the ground cable from battery.
  2. Release the lock and remove the bulb inspection cover of trunk room trim.
    Fig 1: Removing Bulb Inspection Cover Of Trunk Room Trim
    G06653463Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and rear turn signal light bulb.

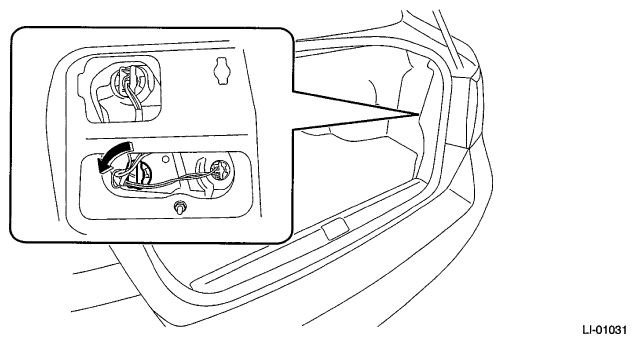

    Fig 2: Removing Bulb Socket And Rear Turn Signal Light Bulb
    G06653472Courtesy of SUBARU OF AMERICA, INC.
