Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the trunk lid trim. Refer to REMOVAL .
  3. Remove the rear finisher light assembly.
    1. Disconnect the connector.
    2. Remove the nuts and bolts and remove the rear finisher light assembly.

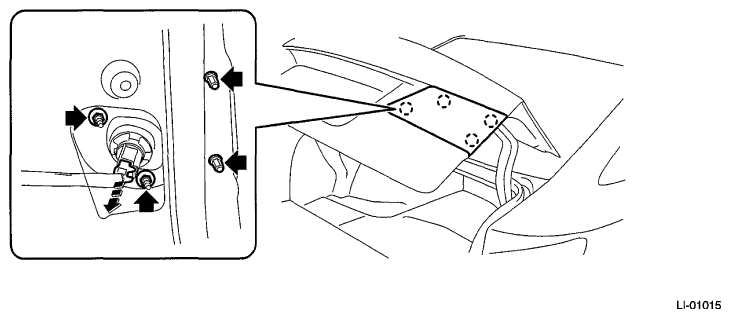

      Fig 1: Removing Rear Finisher Light Assembly
      G06653476Courtesy of SUBARU OF AMERICA, INC.
