Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the trunk room trim. Refer to REMOVAL .
  3. Remove the rear combination light assembly.
    1. Disconnect the connector.
    2. Release the nuts and clips, then remove the rear combination light assembly.
      CAUTION: Be careful not to damage the clips.

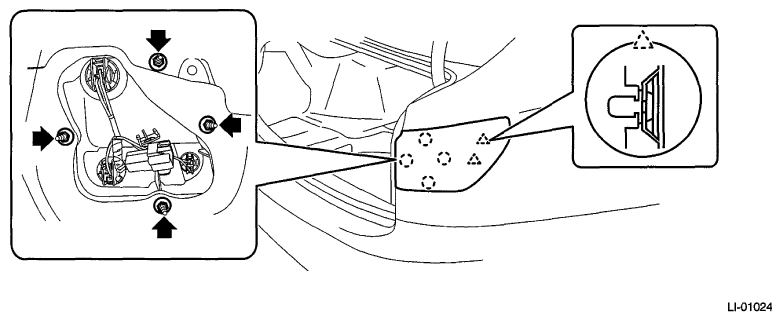

      Fig 1: Locating Rear Combination Light Assembly Mounting Nuts
      G06653460Courtesy of SUBARU OF AMERICA, INC.
