Check Trunk Lid Latch Switch
- Disconnect the trunk lid latch switch connector.

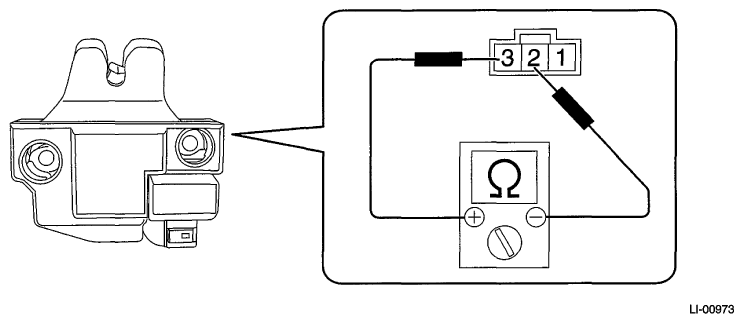

- Measure the resistance between trunk lid latch switch terminals.
Preparation tool:
Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Standard 2 - 3 When trunk lid is opened Less than 1 Ω When trunk lid is closed 1 MΩ or more - If the inspection result is not within the standard value, replace the trunk lid latch and actuator assembly.
