Check Rear Gate Latch Switch
- Disconnect the rear gate latch switch connector.

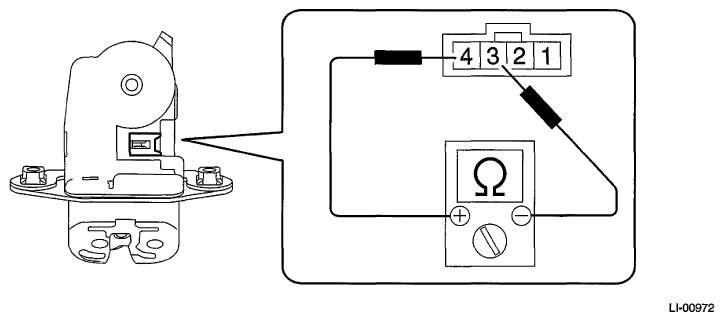

- Measure the resistance between rear gate latch switch terminals.
Preparation tool:
Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Standard 3 - 4 When rear gate is opened Less than 1 Ω When rear gate is closed 1 MΩ or more - If the inspection result is not within the standard value, replace the rear gate latch and actuator assembly.
