Ignition Switch Illumination: Removal

Disconnect the ground cable from battery.
Remove the steering column cover.

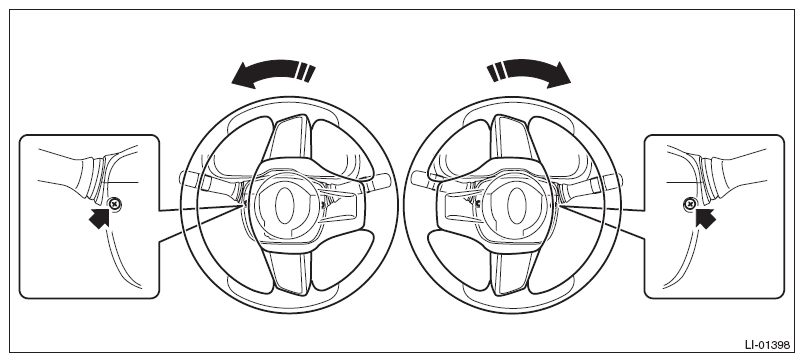

1. Remove the screws by turning the steering wheel to right and left.

  Fig 1: Turning Steering Wheel To Right And Left
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the claws and remove the steering column lower cover.

  Fig 2: Identifying Steering Column Lower Cover
  Courtesy of SUBARU OF AMERICA, INC.
3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.

  Fig 3: Identifying Steering Column Upper Cover
  Courtesy of SUBARU OF AMERICA, INC.

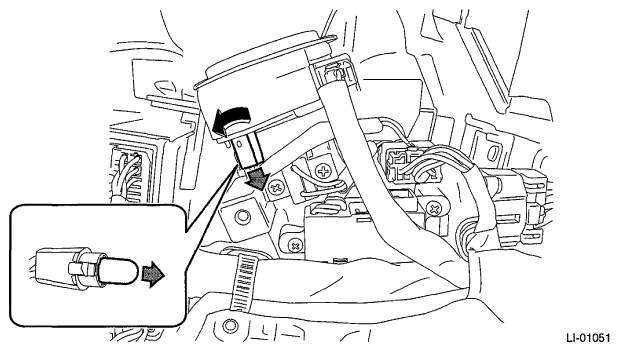

Remove the bulb socket and ignition switch illumination bulb.

Fig 4: Removing Bulb Socket And Ignition Switch Illumination Bulb
Courtesy of SUBARU OF AMERICA, INC.

NOTE: If the bulb socket is faulty, replace the ignition key lock. Refer to IGNITION KEY LOCK .
