High Beam

CAUTION:

Because the halogen bulb operates at a high temperature, dirt and oil on the bulb surface reduces the bulb's service life. Hold the flange portion when replacing the bulb. Never touch the glass portion.
Do not leave the headlight without a bulb for a long time. Dust, moisture, etc. entering the headlight may affect its performance.

Disconnect the ground cable from battery.
Remove the clips and remove the air intake duct. (When removing the headlight high beam bulb RH)

Fig 1: Locating Air Intake Duct Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector and remove the headlight high beam bulb.

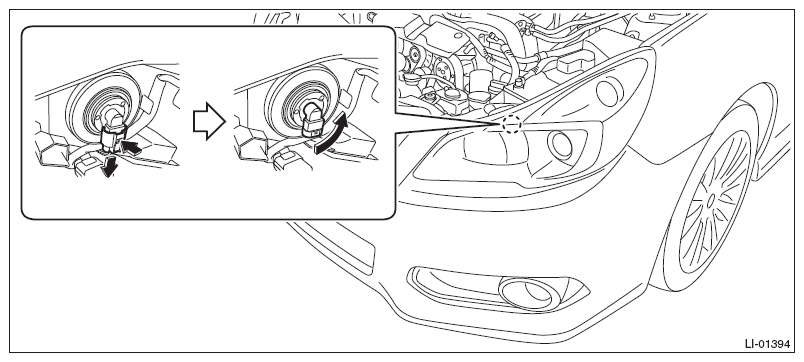

Fig 2: Disconnecting Headlight High Beam Bulb Connector
Courtesy of SUBARU OF AMERICA, INC.
