Headlight Bulb: Installation

NOTE: When installing the back cover, turn it to the position shown in the figure to lock while pressing the entire periphery of the cover.

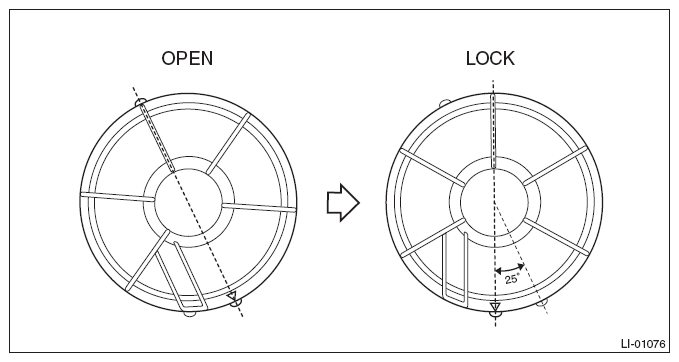

Fig 1: Identifying Back Cover Open And Lock Positions

Courtesy of SUBARU OF AMERICA, INC.

Install each part in the reverse order of removal.
