Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands.

Disconnect the ground cable from battery.
Remove the clips and remove the air intake duct. (When removing the headlight RH)

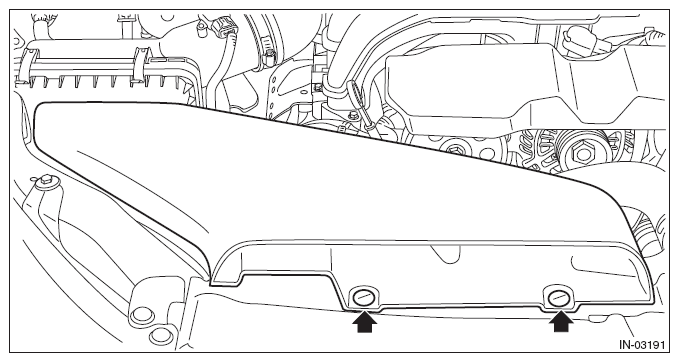

Fig 1: Locating Air Intake Duct Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips and remove the grille bracket.
NOTE: To prevent damage to the grille bracket, make sure to remove all clips.

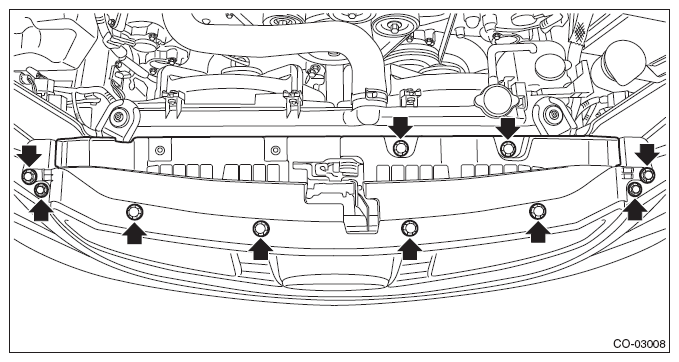

Fig 2: Locating Grille Bracket Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the front bumper face assembly. Refer to REMOVAL .
Remove the fender cover assembly UPR.
1. Remove the clip.
2. Release the claws of the fender cover assembly UPR by pulling it forward and remove the fender cover.

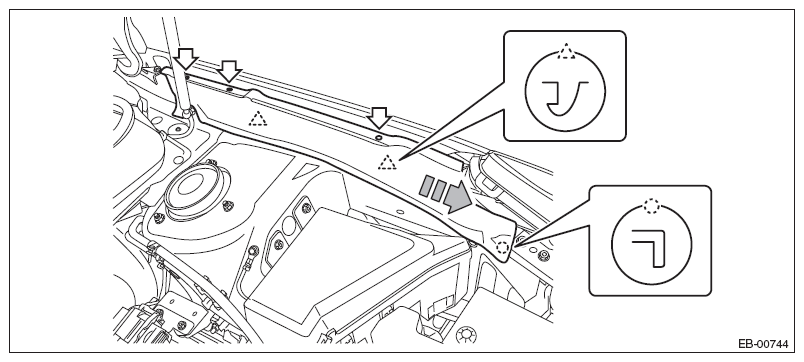

  Fig 3: Removing Fender Cover Assembly Upper
  Courtesy of SUBARU OF AMERICA, INC.
Remove the headlight assembly.
1. Remove the bolts and clips, and pull out the headlight assembly to the front of the vehicle.

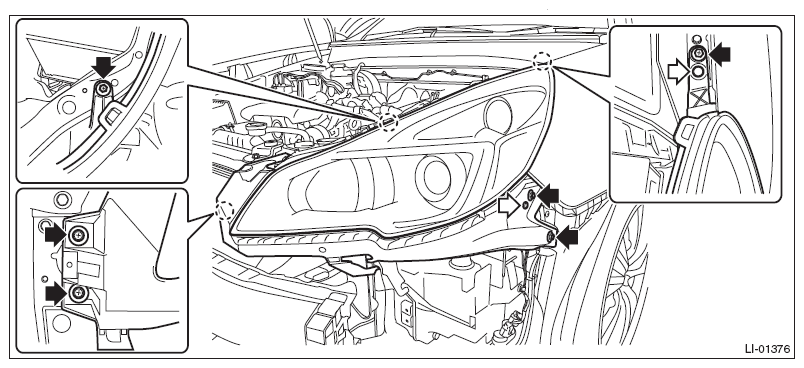

  Fig 4: Locating Headlight Assembly Mounting Bolts And Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connector and remove the headlight assembly.
  - Headlight connector RH

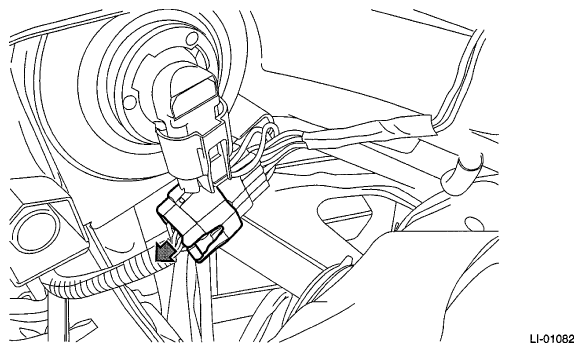

    Fig 5: Disconnecting Headlight Connector RH
    Courtesy of SUBARU OF AMERICA, INC.
  - Headlight connector LH

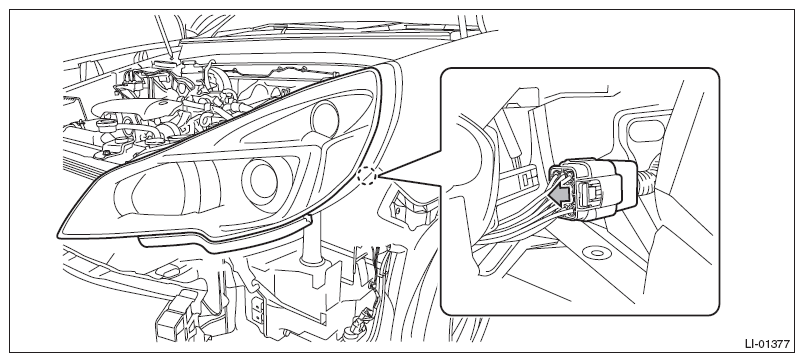

    Fig 6: Disconnecting Headlight Connector LH
    Courtesy of SUBARU OF AMERICA, INC.
