Glove Box Light: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL .
  3. Remove the glove box light from the glove box back panel.

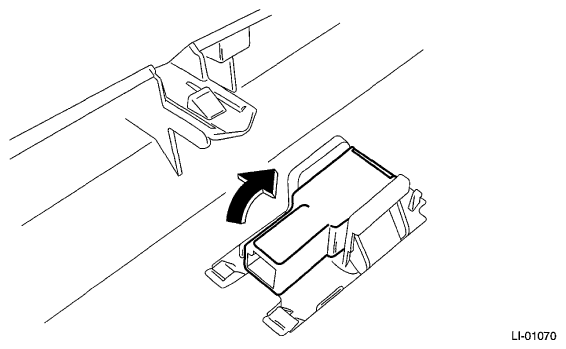

    Fig 1: Removing Glove Box Light From Glove Box Back Panel
    G06653501Courtesy of SUBARU OF AMERICA, INC.
