Front Side Marker Light Bulb: Removal

  1. Disconnect the ground cable from battery.
  2. Turn the steering wheel in the opposite direction from the parts to be removed. Then remove the clips and turn over the mud guard.

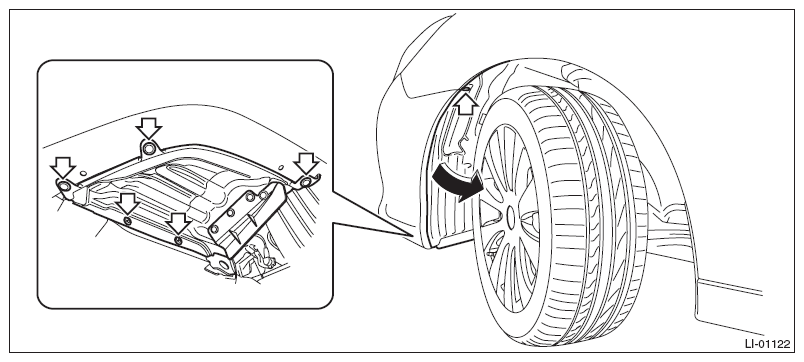

    Fig 1: Removing Mud Guard Mounting Clips
    G07916072Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and front side marker light bulb.

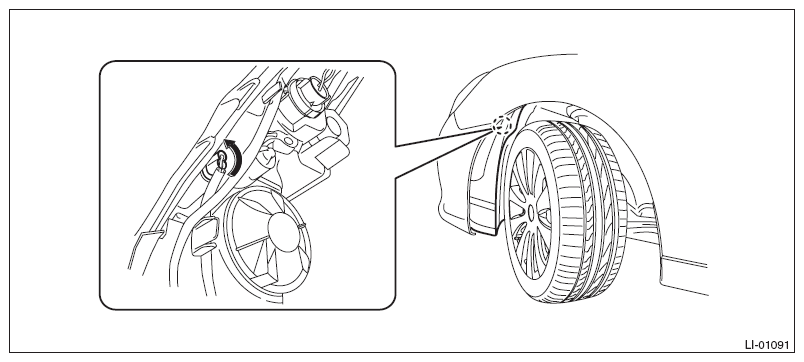

    Fig 2: Removing Bulb Socket And Front Side Marker Light Bulb
    G07916083Courtesy of SUBARU OF AMERICA, INC.
