Door Switch: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the door switch.
    1. Remove the screws, and pull out the door switch.
    2. Disconnect the connector and remove the door switch.

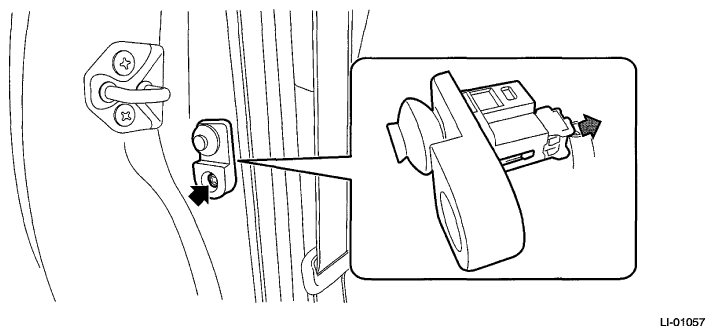

      Fig 1: Removing Door Switch Connector
      G06653509Courtesy of SUBARU OF AMERICA, INC.
