Door Step Light: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the door step light.
    CAUTION: Be careful not to damage light and door trim.
    1. Insert a flat tip screwdriver into the slit of the door step light to release the claw.
    2. Disconnect the connector and remove the door step light.

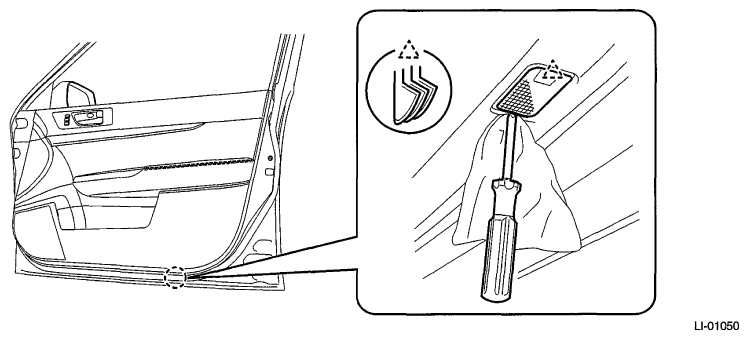

      Fig 1: Removing Door Step Light
      G06653502Courtesy of SUBARU OF AMERICA, INC.
