Day Time Running Resistor: Removal

  1. Remove the front bumper face assembly. Refer to REMOVAL .
  2. Remove the daytime running resistor.
    1. Disconnect the connector.
    2. Remove the bolt, and remove the daytime running resistor.

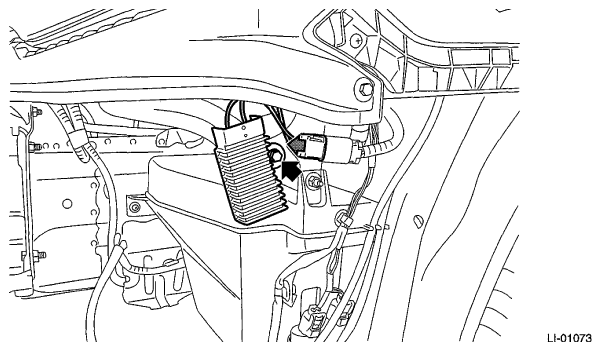

      Fig 1: Locating Daytime Running Resistor Mounting Bolt
      G06653507Courtesy of SUBARU OF AMERICA, INC.
