Combination Switch (Light): Removal

Position the front wheels straight ahead. (After moving a vehicle 5 m (16 ft) or more with front wheels positioned straight ahead, make sure that the vehicle moves straight ahead.)
Turn the ignition switch to OFF.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.
Remove the driver's airbag module assembly.
CAUTION: Before handling the airbag module, refer to CAUTION .
1. Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (3 locations).

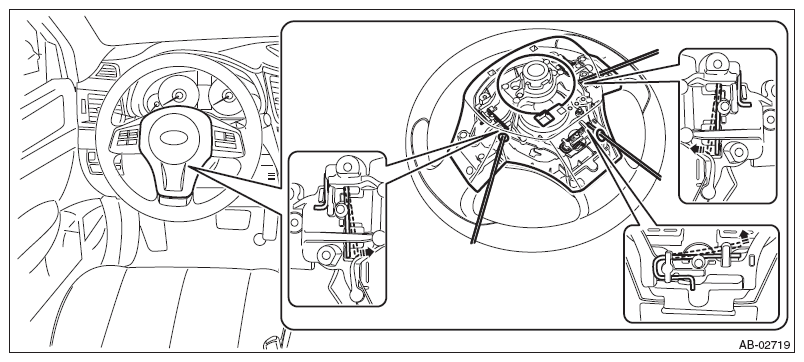

  Fig 1: Releasing Airbag System Locks Using Hexagon Wrench
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the horn harness and airbag connector and remove the airbag module assembly. Refer to PROCEDURE .

  Fig 2: Disconnecting Horn Harness And Airbag Connector
  Courtesy of SUBARU OF AMERICA, INC.
Remove the steering wheel.
CAUTION:
- Always use the steering wheel puller for removal to avoid deforming the steering wheel.
- If the steering wheel has been removed, make sure that the roll connector is not turned from the original position.
1. Disconnect the connector and remove the nut.
2. Put alignment marks and remove the steering wheel using a steering wheel puller.
  Preparation tool:

  Steering wheel puller

  Fig 3: Locating Steering Wheel Mounting Nut
  Courtesy of SUBARU OF AMERICA, INC.
Remove the steering column cover.
1. Lower the lever of the steering column.
2. Release the claws and remove the screws, then detach the steering column lower cover.

  Fig 4: Removing Steering Column Cover
  Courtesy of SUBARU OF AMERICA, INC.
3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.

  Fig 5: Identifying Steering Column Upper Cover
  Courtesy of SUBARU OF AMERICA, INC.
Remove the roll connector.
CAUTION: Make sure that the roll connector is not turned from the original position.
1. Disconnect the connector under the roll connector.
2. Release the claws and remove the roll connector.

  Fig 6: Caution For Removing Roll Connector
  Courtesy of SUBARU OF AMERICA, INC.
Remove the wiper switch assembly.
1. Disconnect the connector from wiper switch.
2. Release the claws, and pull out the wiper switch assembly.
  CAUTION: Do not press the claws with excessive force. They may be damaged.

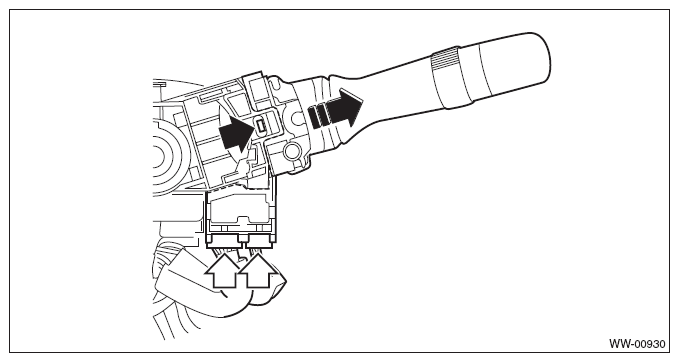

  Fig 7: Removing Wiper Switch Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove the combination switch (light).
1. Disconnect the connector of combination switch.
2. Remove the screws and detach the combination switch (light).

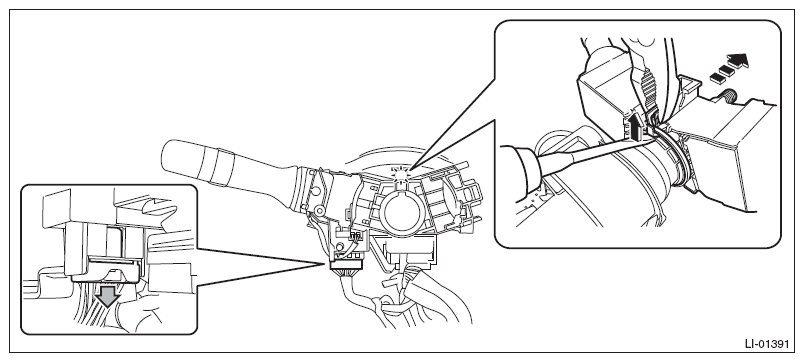

  Fig 8: Removing Combination Switch (Light)
  Courtesy of SUBARU OF AMERICA, INC.
