Clearance/Parking Light Bulb: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct. (When removing the parking light bulb RH)
    Fig 1: Locating Air Intake Duct Mounting Clips
    G08583851Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and parking light bulb.
    NOTE: Move the battery rearward as required. (When removing the parking light bulb LH)

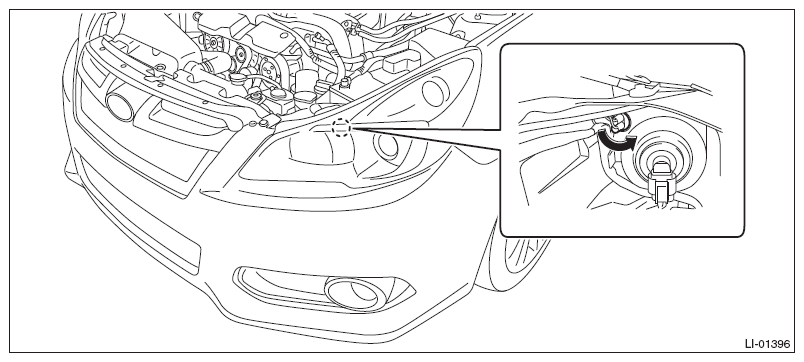

    Fig 2: Removing Bulb Socket And Parking Light Bulb
    G08584416Courtesy of SUBARU OF AMERICA, INC.
