Sedan Model

  1. Disconnect the ground cable from battery.
  2. Release the lock and remove the bulb inspection cover of trunk room trim.
    Fig 1: Removing Bulb Inspection Cover Of Trunk Room Trim
    G06653463Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and back-up light bulb.

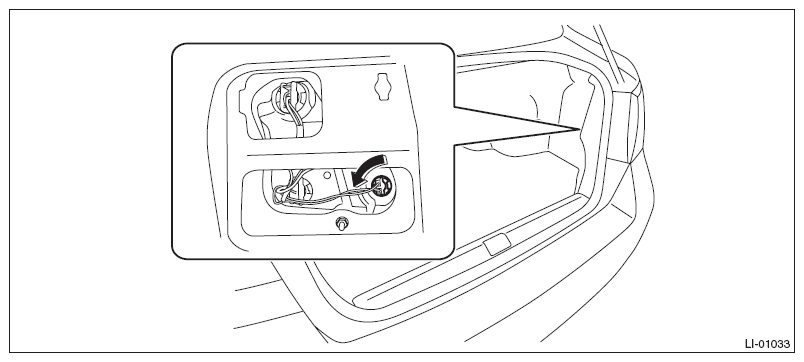

    Fig 2: Removing Bulb Socket And Back-Up Light Bulb
    G07916112Courtesy of SUBARU OF AMERICA, INC.
