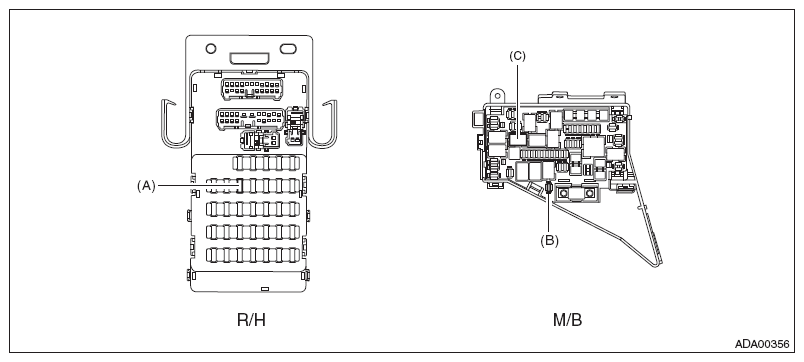

Relay and Fuse: Location
Courtesy of SUBARU OF AMERICA, INC.
| Relay & fuse box |
Fuse 15A (stop light and brake switch) |
(A) |
| Main fuse box |
Fuse 10 A (stereo camera) |
(B) |
| Brake light relay |
(C) |
NOTE:
For other related fuses, refer to the wiring diagram. < Refer to
appropriate SYSTEM WIRING DIAGRAM. >
