Components With Torque Specifications

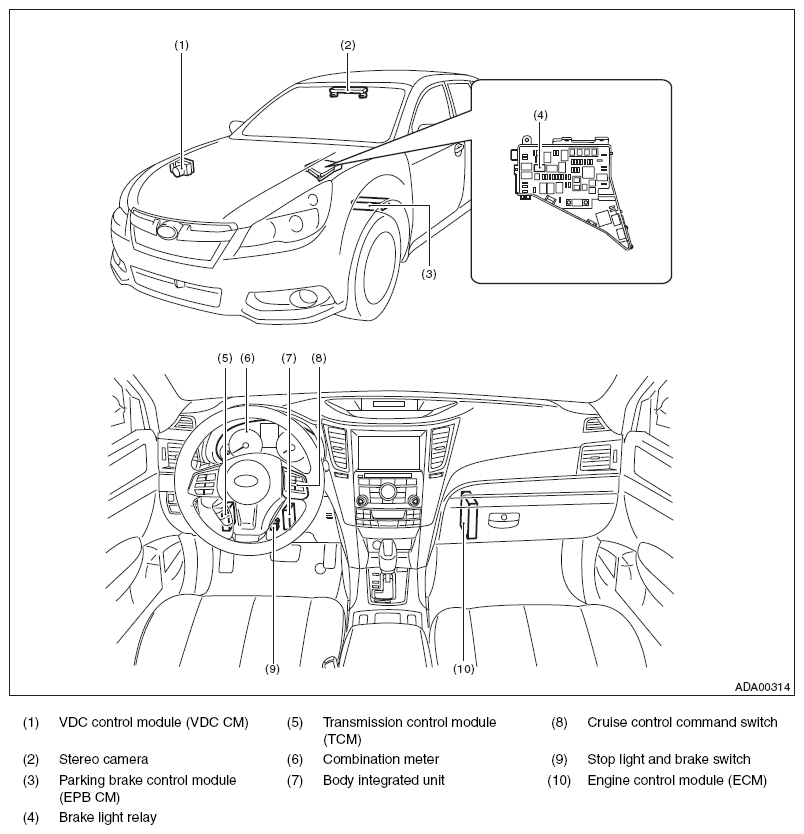

Fig 1: Eyesight Component Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

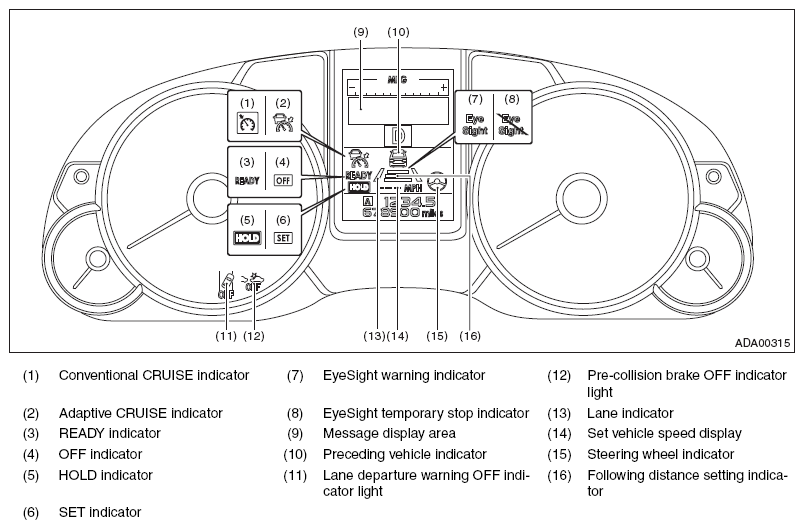

Fig 2: Eyesight Component Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

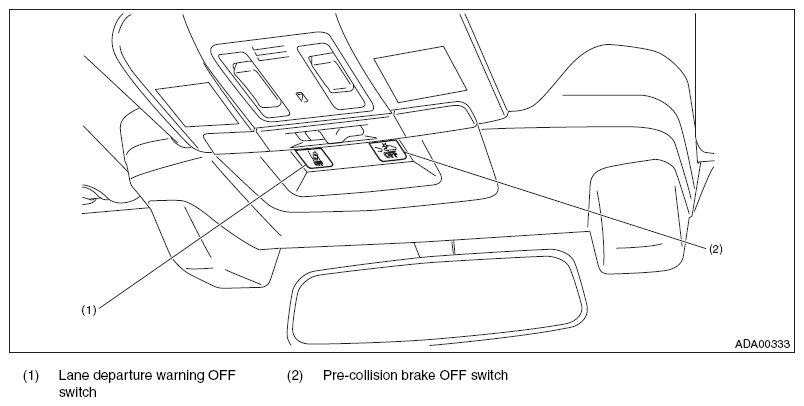

Fig 3: Eyesight Component Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

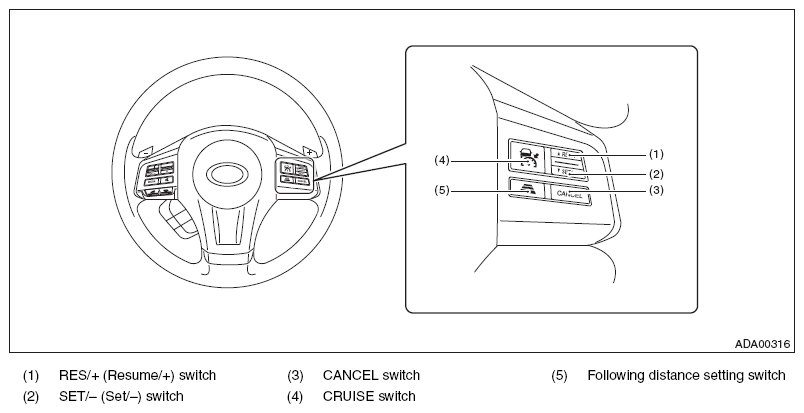

Fig 4: Eyesight Component Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
