Windshield Glass And Dashboard
Remove the windshield glass and dashboard in front of the stereo camera.
Standard:
There must be no oil film, dirt, scratch or fogging that obstructs the forward visibility of the stereo camera.

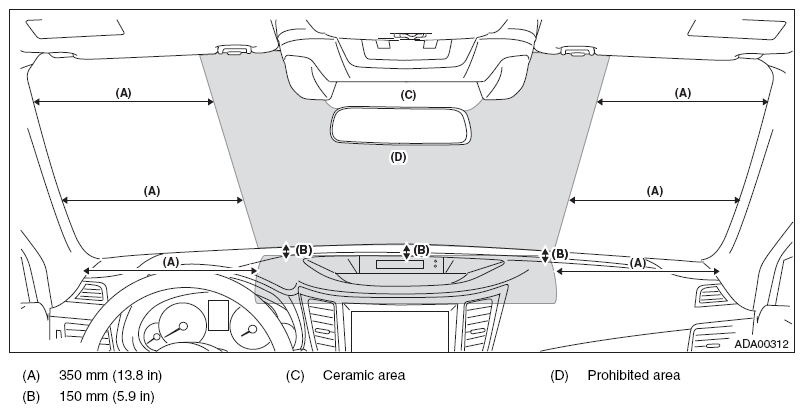

Do not stick or attach the retrofit parts on the prohibited area (E) shown in the figure below.
Even outside the prohibited area, if the abnormal operation occurs due to the reflection of the light or the reflection to the glass, change the adhering position or installation position.
- Application of stickers or antennas
- This will affect the visibility of the stereo camera, causing the function not to operate correctly.
- Object on the dashboard
- These things will be reflected on the windshield glass, affecting the recognition of the stereo camera, thus causing the function not to operate correctly.
- Front view
- Side view
NOTE:
- Clean the windshield glass if dirt or fogging is found on the glass. Repair or replace the glass if damage is found.
- When cleaning the inner side of the windshield glass, be careful not to touch the lens of the stereo camera. Take care so that the glass cleaner is not applied to the lens. (As with the removal of the stereo camera, cover the camera cover opening with the protective tape with a weak adhesive force such as masking tape, etc before operation. After operation, be sure to remove the tape.) < Refer to REMOVAL , Stereo Camera. >
- When replacing the windshield glass, be sure to replace the part for the EyeSight.
- If the glass is removed or replaced, always perform the stereo camera adjustment and inspection.
- Relocate any retrofit parts out of the prohibited area.
- Do not touch the lens on the stereo camera. Do not clean the lens of the stereo camera. (If the lens surface is touched, the lens hood must be replaced as it is impossible to clean the lens surface for ensuring quality.)
