Stereo Camera

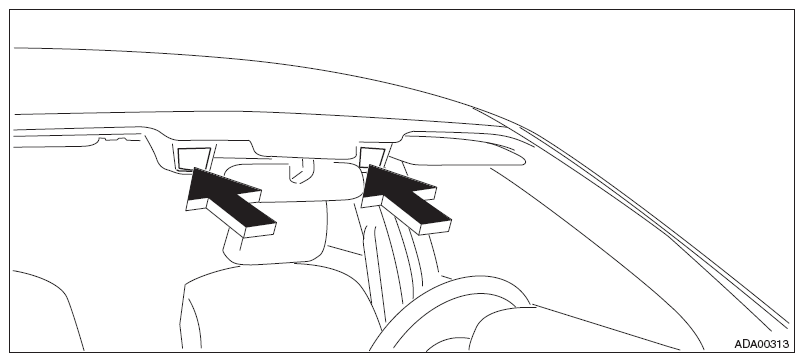

Check the lens filter on the left and right camera lenses of the stereo camera for fingerprints or lens filter for cracks or etc. through the windshield glass.
NOTE:
- Do not remove the camera or camera cover to check the lens.
- When spider's web or insects are found in the visibility of the camera or lens hood, remove it using the air blow not to touch the lens surface. Do not cover them with hand or cloth.
- If the oil film such as fingerprint adheres or lens filter cracks, the lens hood must be replaced. < Refer to REPLACEMENT OF LENS HOOD , REPLACEMENT, Stereo Camera. >
- If the fingerprint adhesions or cracks occur on the lens filter, the following failures may arise.
- The vehicle may not be able to detect the preceding vehicle or obstacle due to the effects of the headlight of the oncoming vehicle.
- The vehicle may not be able to detect the preceding vehicle or obstacle due to the effects of the brake light operation of the preceding vehicle.
- All the functions of the EyeSight may be suspended by the self-diagnosis function equipped with the camera.
- When the lens filter is broken, the vehicle may not be able to detect the preceding vehicle or obstacle all day and all night.
- Even if the lens filter is not touched, applying the force to the black hood securing the lens filter may tension the lens filter to crack it.
