SUBARU Eyesight System (Driver Assist) (Diagnostics): Electrical Component Location: Location

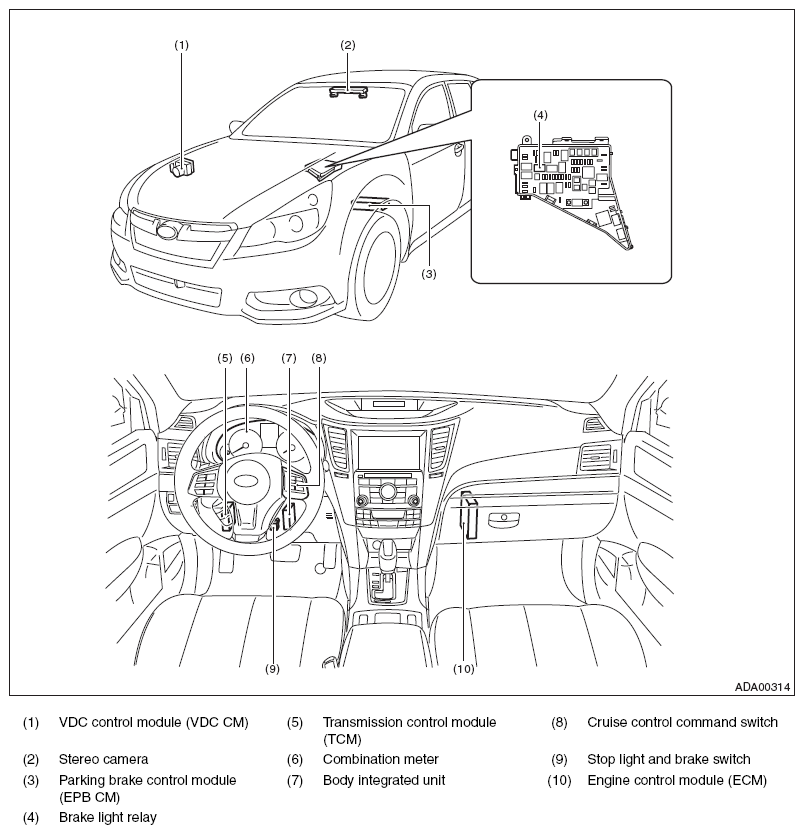

Fig 1: Electrical Component Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

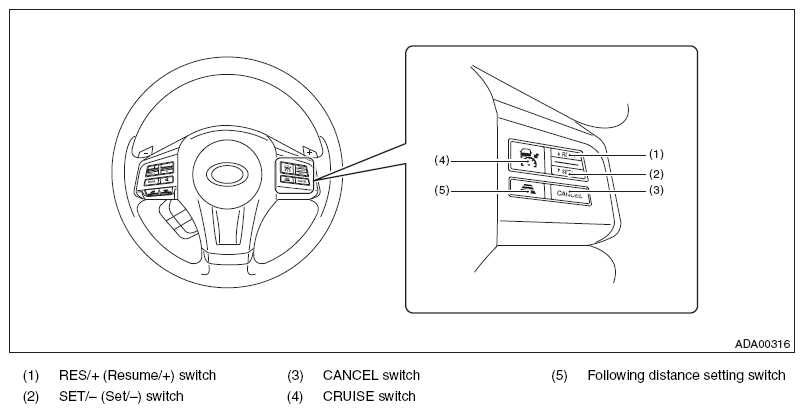

Fig 2: Electrical Component Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

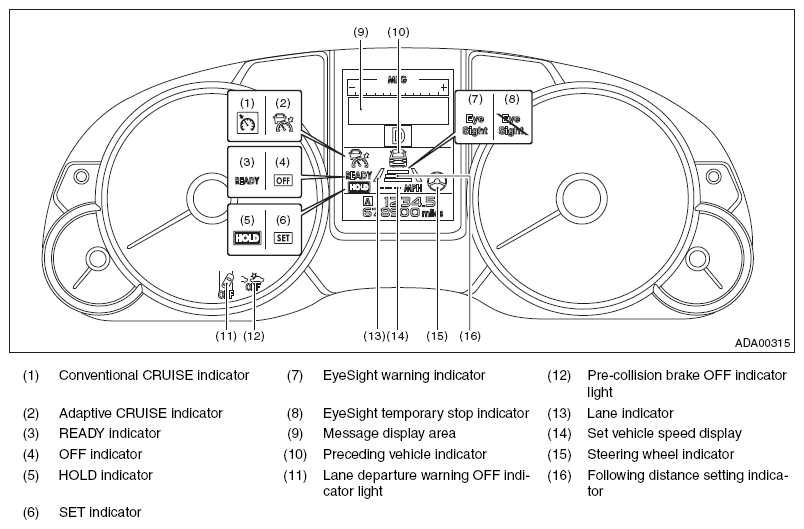

Fig 3: Electrical Component Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

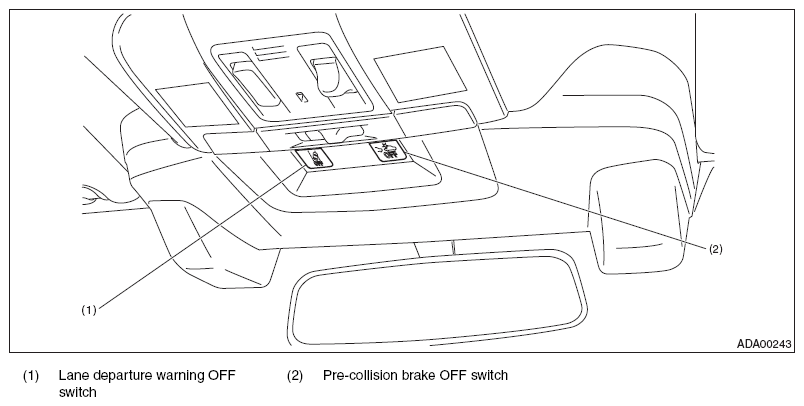

Fig 4: Electrical Component Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
