DTC B28A0 Vehicle Model Judgment Abnormal: Wiring Diagram

EyeSight System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

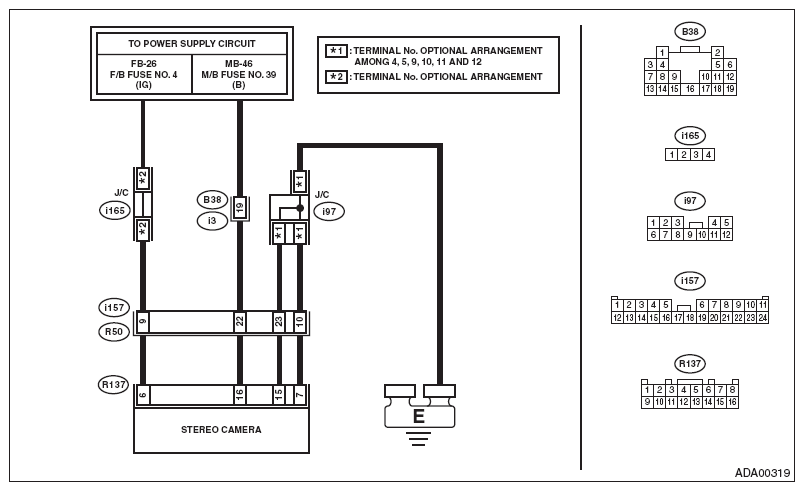

Fig 1: Eyesight System - Wiring Diagram (Vehicle Model Judgment Abnormal)

Courtesy of SUBARU OF AMERICA, INC.
