Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC B2817 Brake Lamp Error
>>
Wiring Diagram
DTC B2817 Brake Lamp Error: Wiring Diagram
EyeSight System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

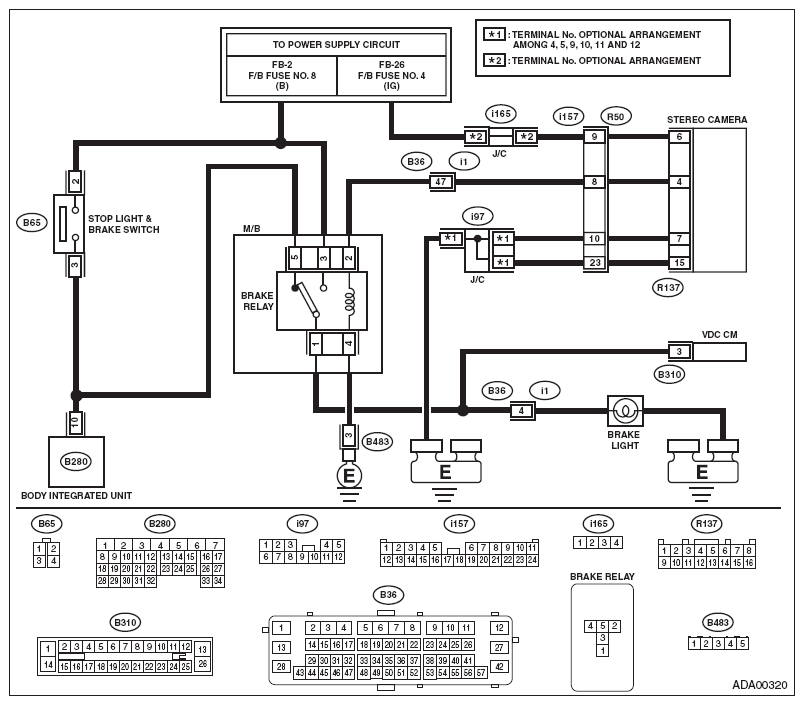

Fig 1: Eyesight System - Wiring Diagram (Brake Lamp)
Courtesy of SUBARU OF AMERICA, INC.
