DTC B1106 Shift Lock Circuit Failure: Wiring Diagram

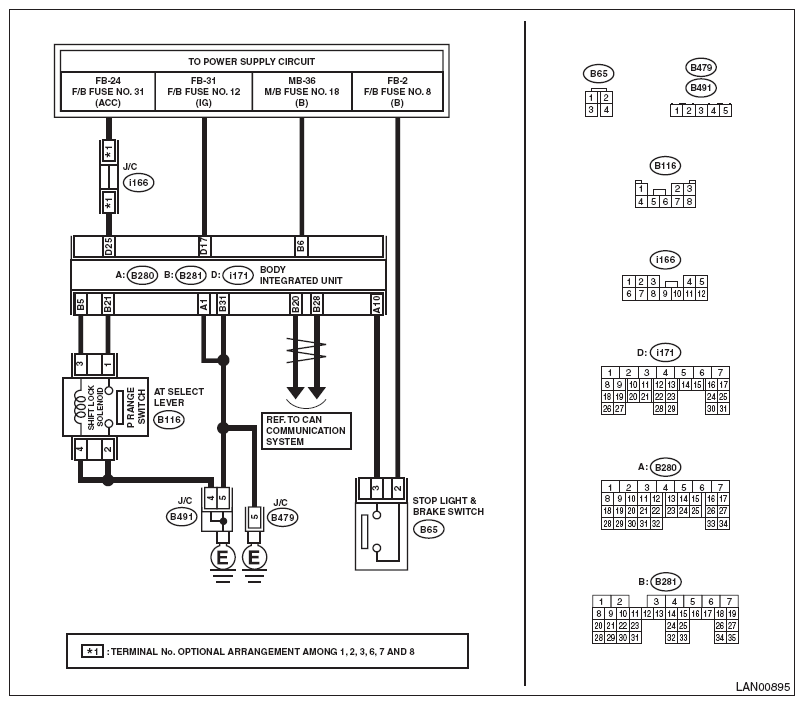

Shift lock control system. Refer to appropriate SYSTEM WIRING DIAGRAM article.
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK DTC.
|
Is B1106 current malfunction? | Go to step 6 . | Go to step 2 . |
2 CHECK DTC.
|
Is B1106 current malfunction? | Go to step 3 . | Go to step 7 . |
3 CHECK HARNESS.
|
Is the resistance less than 10 Ω? | Go to step 4 . | Repair or replace the open circuit of harness. |
| 4 CHECK SHIFT LOCK SOLENOID. Using a tester, measure the resistance between shift lock solenoid terminals. Connector & terminal (B116) No. 4 - No. 3: |
Is the resistance less than 27 - 31 Ω? | Go to step 5 . | Replace the shift lock solenoid. Refer to DISASSEMBLY , Select Lever. |
| 5 CHECK SHIFT LOCK SOLENOID. Connect the battery terminal to shift lock solenoid. Connector & terminal (B116) No. 3 - positive terminal: (B116) No. 4 - ground terminal: |
Does the shift lock solenoid operate and then release the lock? | Go to step 6 . | Replace the shift lock solenoid. Refer to DISASSEMBLY , Select Lever. |
| 6 CHECK HARNESS. Use a tester to measure the resistance between harness terminals. Connector & terminal (B116) No. 3 - (B281) No. 5:
NOTE:
If body integrated unit and shift lock connector are not disconnected, disconnect them first and then perform measurement.
|
Is the resistance less than 10 Ω? | Replace the body integrated unit. Refer to BODY INTEGRATED UNIT . | Repair or replace the open circuit of harness. |
7 CHECK DTC.
|
Is B1106 current malfunction? | Go to step 8 . | Go to step 9 . |
8 CHECK DTC.
|
Is B1106 current malfunction? | Go to step 4 . | Go to step 9 . |
9 CHECK CONNECTOR.
|
Is there poor contact of connector terminal? | Repair or replace the poor contact of terminal. | It is possible that temporary poor contact occurs. |
