Crank Sprocket: Removal
NOTE:
When replacing a single part, perform the work with the engine assembly installed to body.
- Remove the chain cover. Refer to
REMOVAL .
- Remove the timing chain. Refer to
REMOVAL .

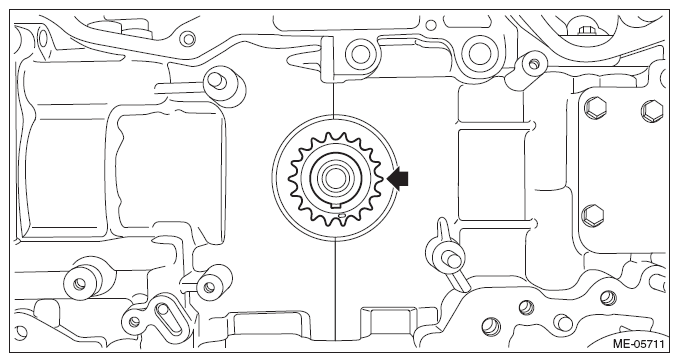

- Remove the crank sprocket.
Courtesy of SUBARU OF AMERICA, INC.
