Wiper Deicer System: Wiring Diagram

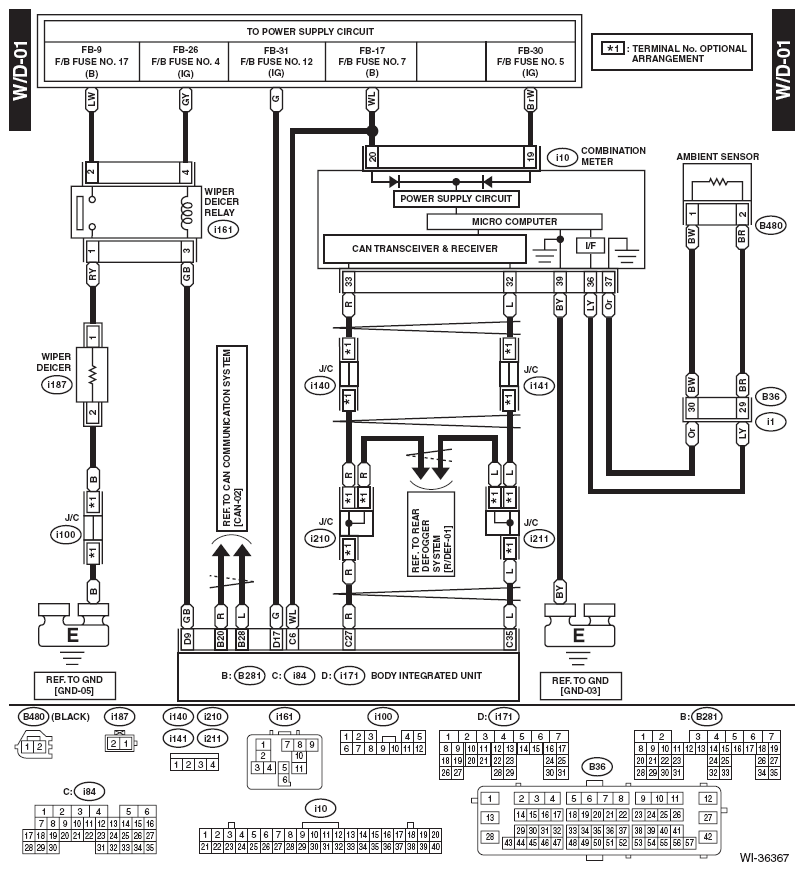

Fig 1: Wiper Deicer System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
