Seat Belt Warning System
>>
Wiring Diagram
>>
Model With Power Seats
Model With Power Seats

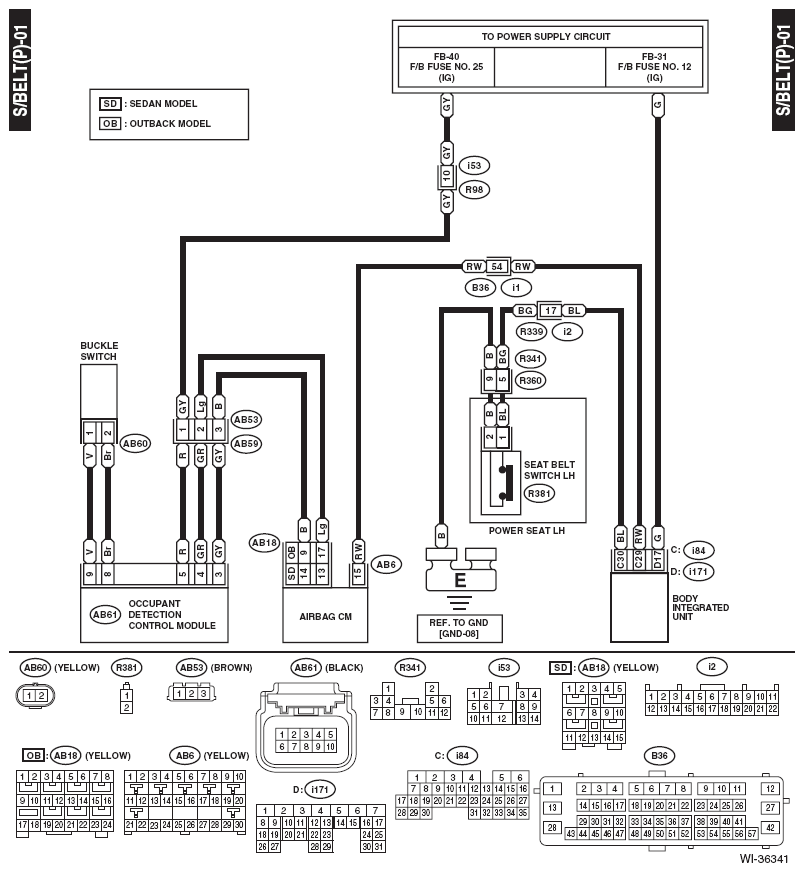

Fig 1: Seat Belt Warning System Wiring Diagram - Model With Power Seats (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

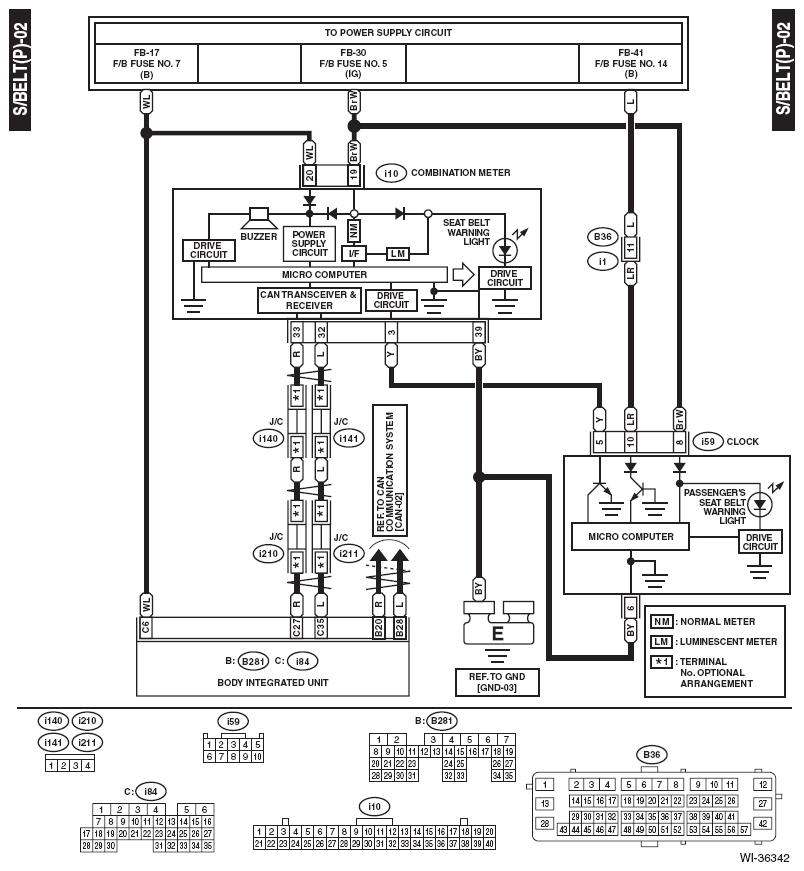

Fig 2: Seat Belt Warning System Wiring Diagram - Model With Power Seats (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
