Seat Belt Warning System
>>
Wiring Diagram
>>
Manual Seat Model
Manual Seat Model

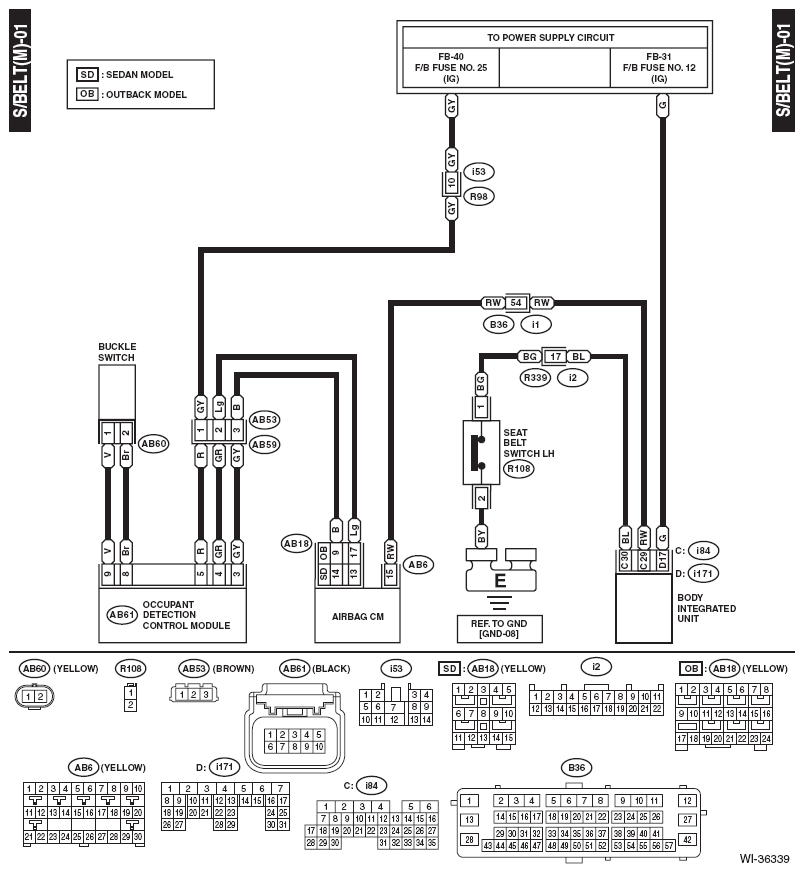

Fig 1: Seat Belt Warning System Wiring Diagram - Manual Seat Model (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

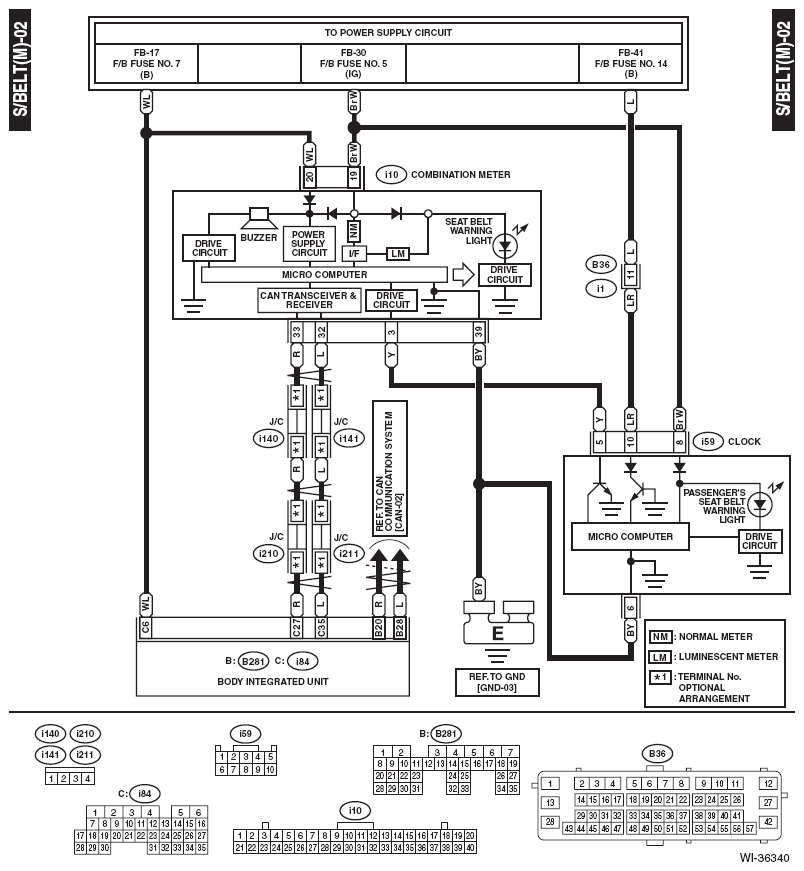

Fig 2: Seat Belt Warning System Wiring Diagram - Manual Seat Model (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
