Rearview Mirror System
>>
Wiring Diagram
>>
Without Home Link
Without Home Link

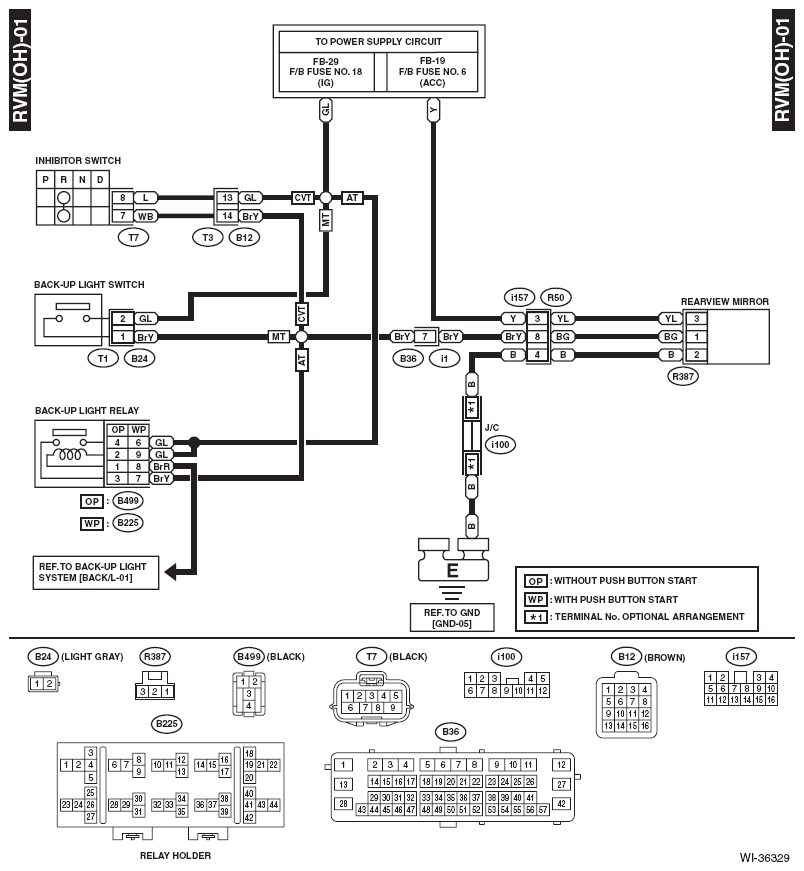

Fig 1: Rearview Mirror System Wiring Diagram - Without Home Link
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
