Rearview Mirror System
>>
Wiring Diagram
>>
With Home Link
With Home Link
Without rearview display

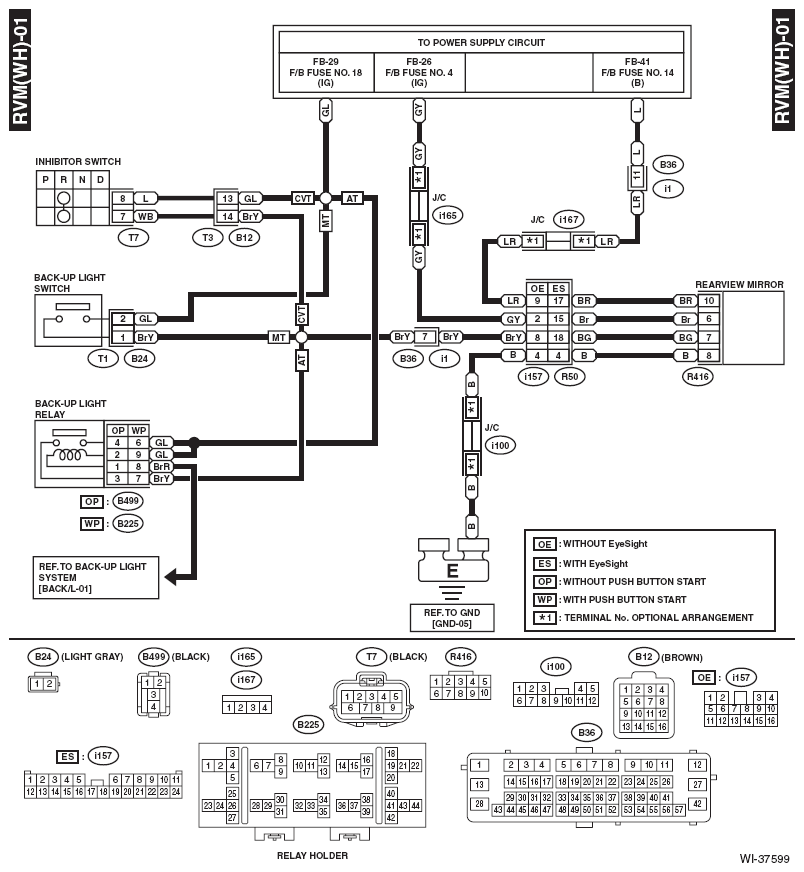

Fig 1: Rearview Mirror System Without Rearview Display Wiring Diagram - With Home Link
Courtesy of SUBARU OF AMERICA, INC.
With rearview display

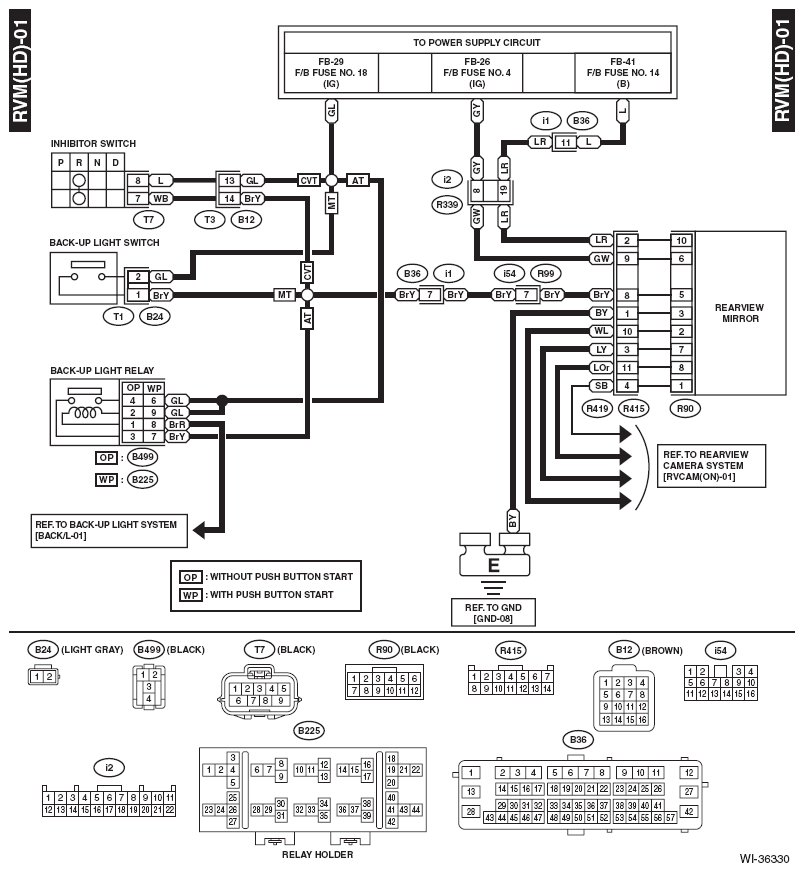

Fig 2: Rearview Mirror System With Rearview Display Wiring Diagram - With Home Link
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
