Wiring Diagram - With Push Button Start

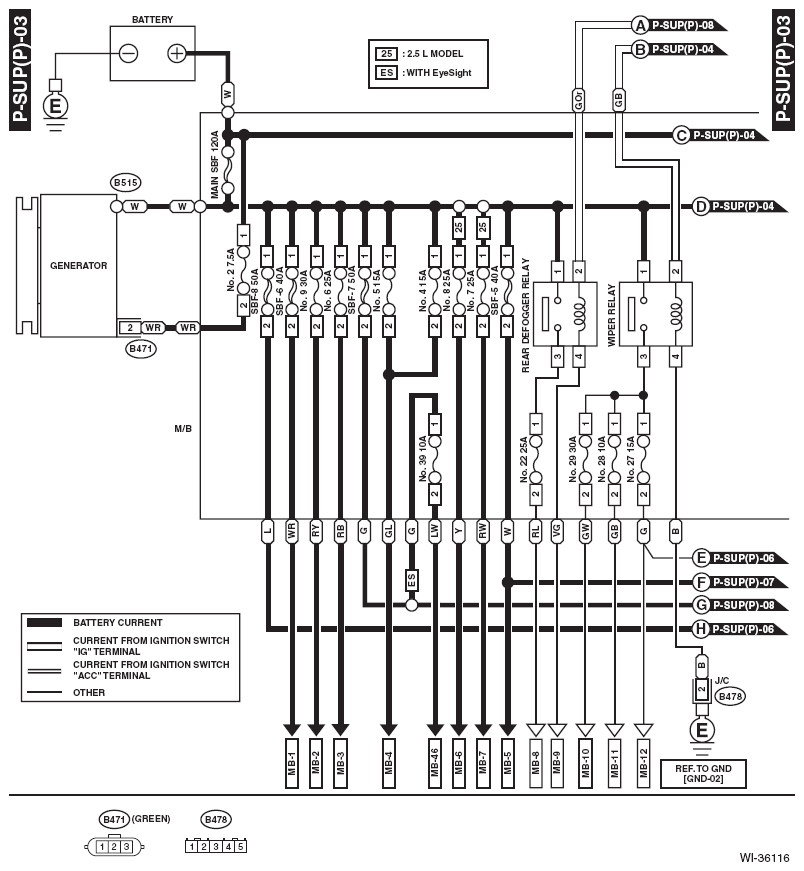

Fig 1: Power Supply Wiring Diagram (Passenger Room Side) - With Push Button Start (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

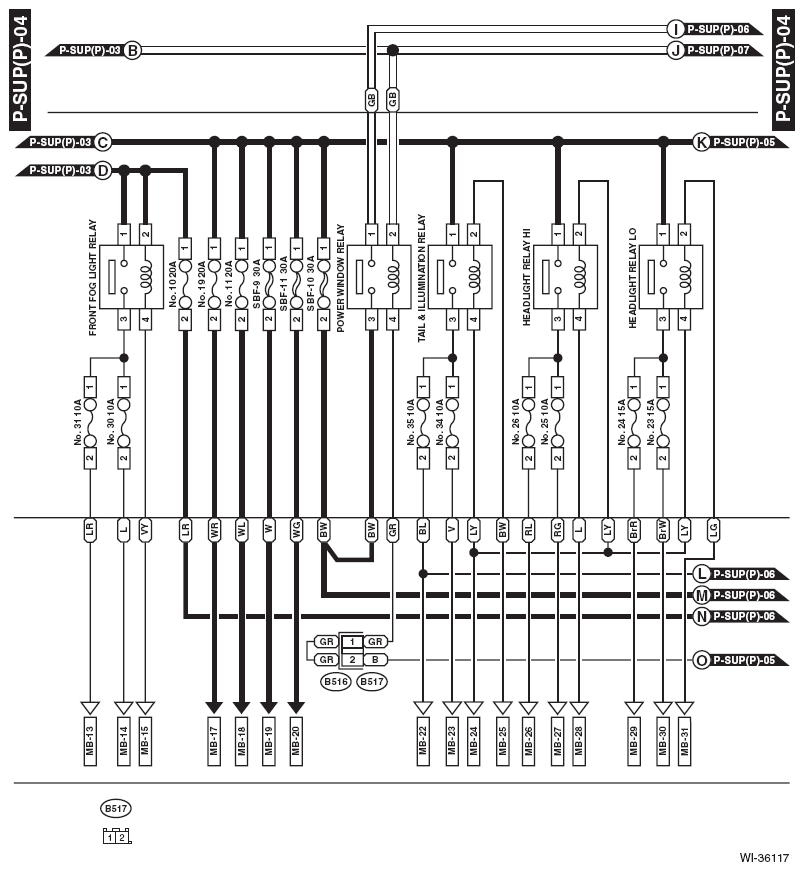

Fig 2: Power Supply Wiring Diagram (Passenger Room Side) - With Push Button Start (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

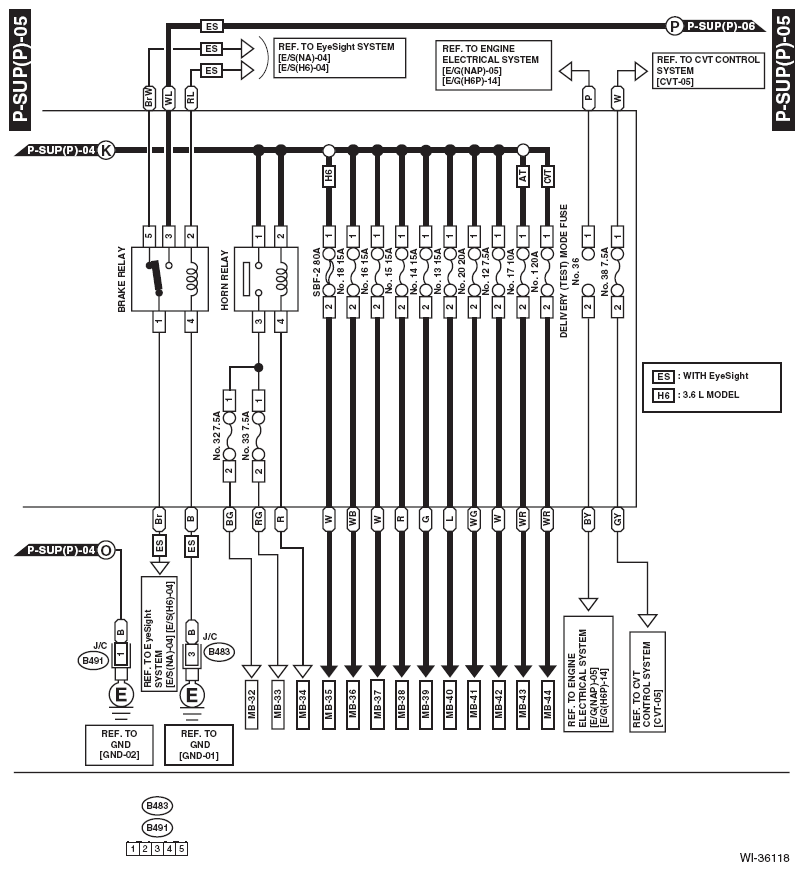

Fig 3: Power Supply Wiring Diagram (Passenger Room Side) - With Push Button Start (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

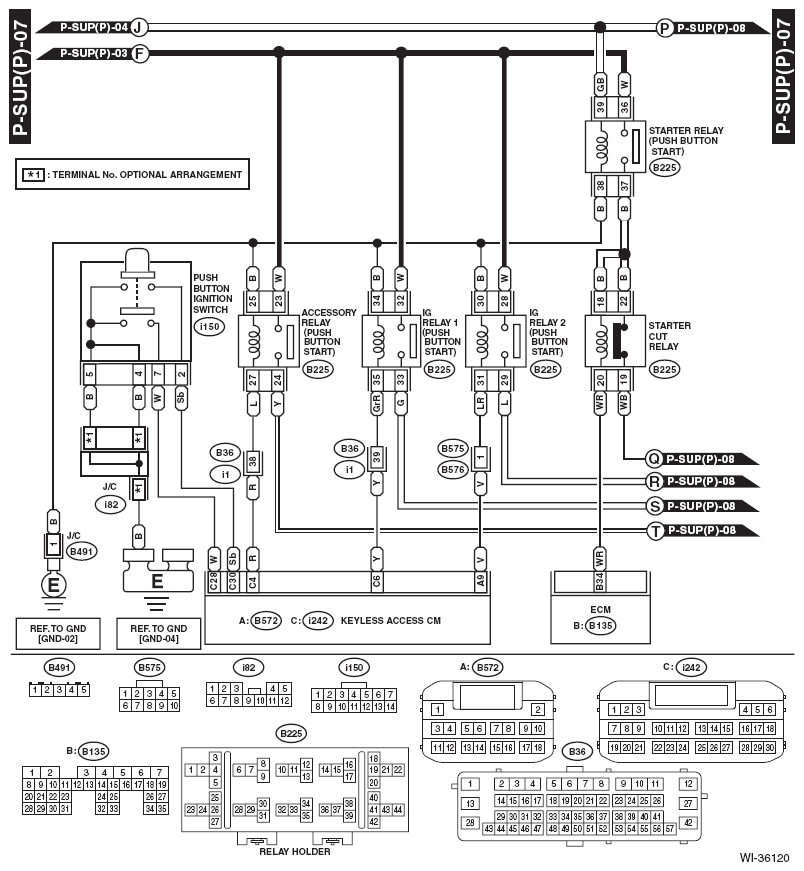

Fig 4: Power Supply Wiring Diagram (Passenger Room Side) - With Push Button Start (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

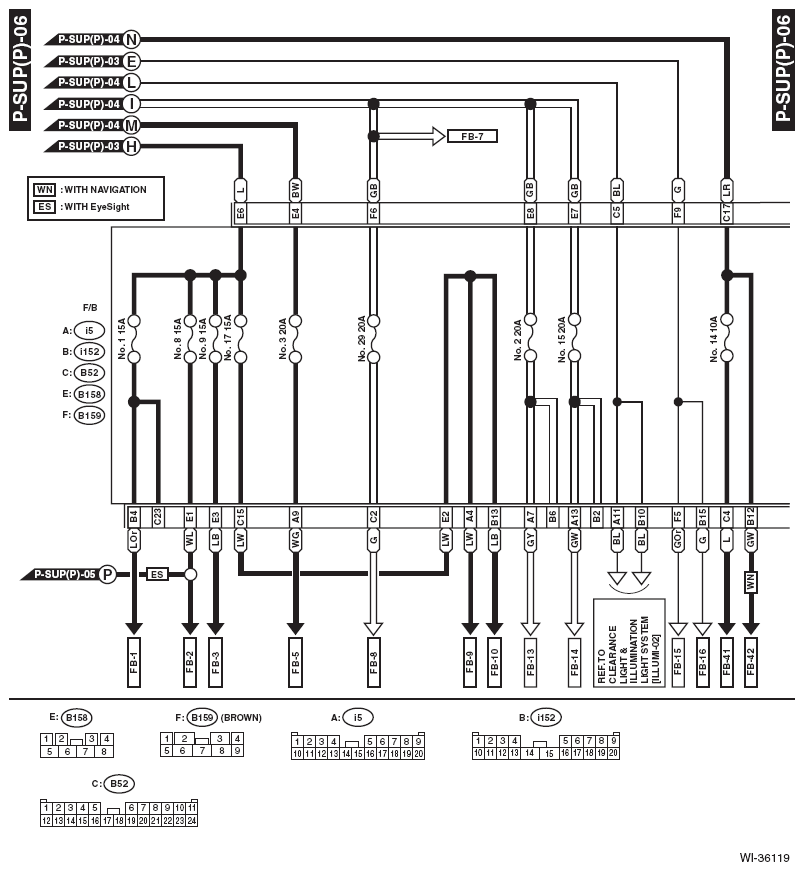

Fig 5: Power Supply Wiring Diagram (Passenger Room Side) - With Push Button Start (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

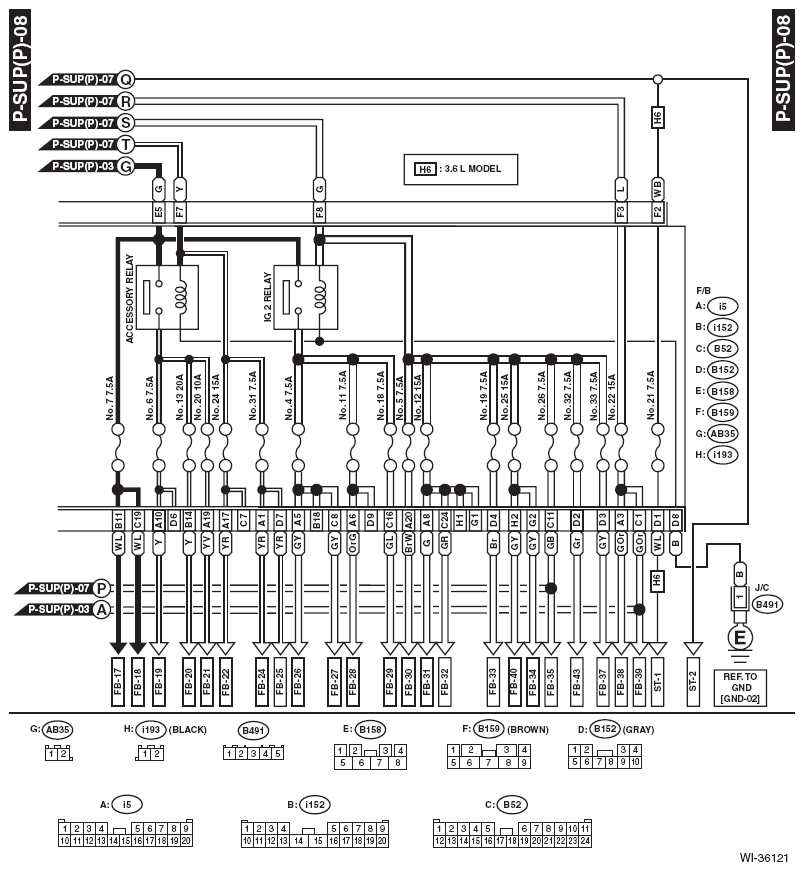

Fig 6: Power Supply Wiring Diagram (Passenger Room Side) - With Push Button Start (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
