Horn System: Wiring Diagram

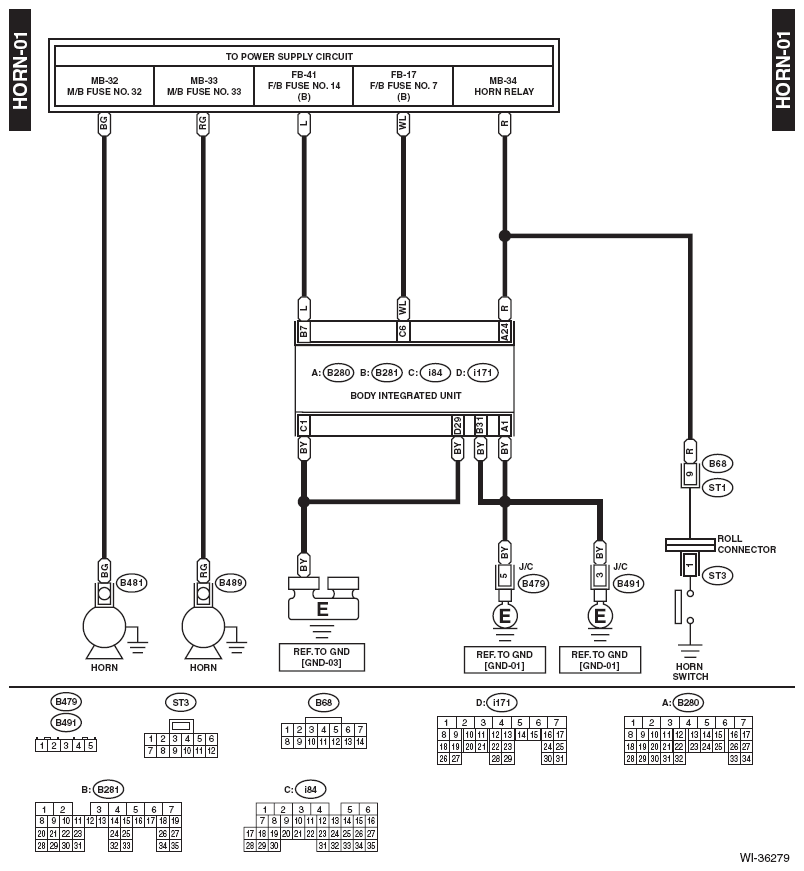

Fig 1: Horn System Wiring Diagram

G11908500

Courtesy of SUBARU OF AMERICA, INC.
