Front Wiring Harness
>>
Location
Front Wiring Harness: Location
Connector
Connecting to
No.
Pole
Color
Area
No.
Description
F106
3
Light gray
C-1
Radiator fan CM (3.6 L model)
F135
4
Black
D-3
B504
Bulkhead wiring harness (3.6 L model)

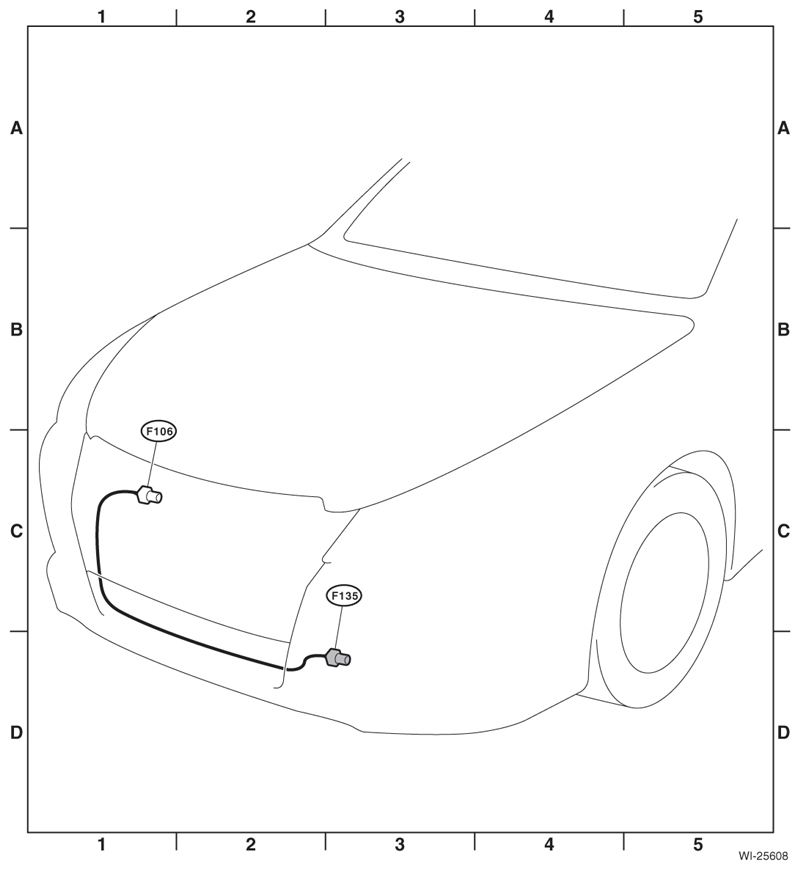

Fig 1: Front Wiring Harness Location
Courtesy of SUBARU OF AMERICA, INC.
